22K 16mm Logarithmic Splined Potentiometer

SKU 484818

MPN: 484818

Availability:
831 in stock
Original price £0
Original price £0.53 - Original price £0.53
Original price
Current price £0.53(inc. VAT)
£0.53 - £0.53
Current price £0.53
 More payment options

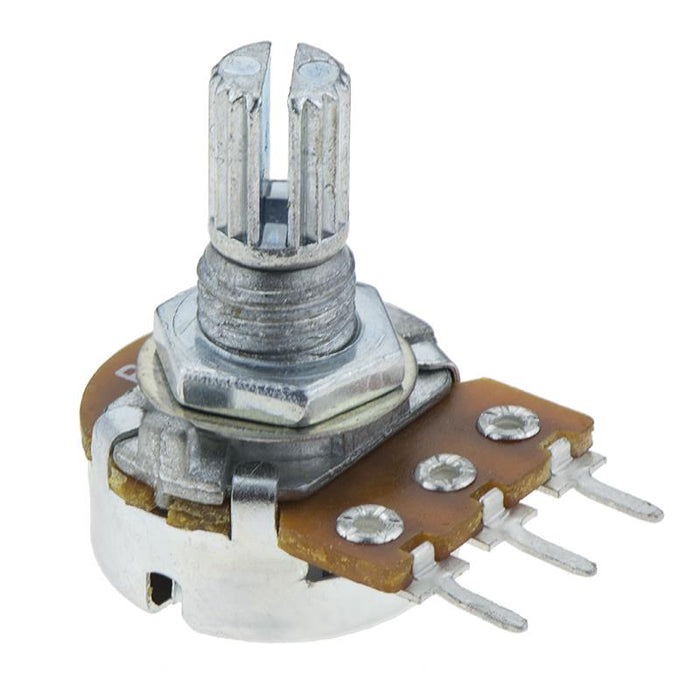

22K logarithmic 16mm potentiometer with a splined 6mm shaft suitable for PCB mounting.

  • Standard 16mm body diameter
  • PCB contacts
  • 20% tolerance
  • Panel cut-out: 7mm
  • 5mm pitch
  • 15mm shaft length
  • Specification
    Back Order Lead Time 45 Days
    Dimensions 17mm Diameter
    Maximum Voltage 150V
    Mounting Hole Diameter 7mm
    Mounting Type Panel Mount
    Operating Temperature -25°C to +70°C
    Pitch 5mm
    Power Rating 0.063W
    Resistance 22KΩ
    Shaft Diameter 6mm
    Taper Logarithmic
    Termination Type Pin
    Tolerance ±20%
    Total Rotation 300°
