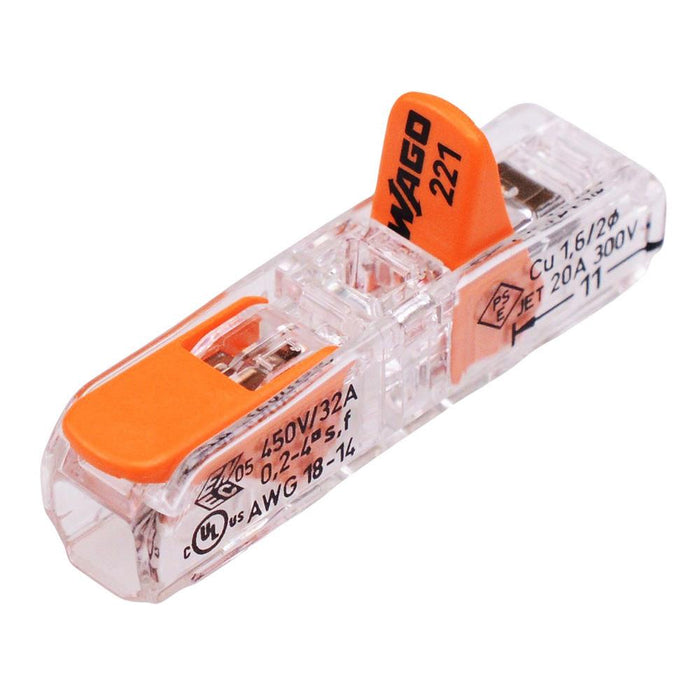

221-2411 WAGO Inline Lever Splicing Connectors 32A 450V

by Wago
SKU 489308

MPN: 221-2411

561 in stock
Original price £0.62 - Original price £0.62
Original price
£0.62 Inc VAT
£0.62 - £0.62
Current price £0.62 Inc VAT
The 221-2411 is an inline connector manufactured by Wago featuring spring levers, suitable for use with solid and stranded wires. The connectors feature a slim design which saves space in tight areas, and no tools are required thanks to the lever technology. These connectors can be combined with a mounting carrier for fixed and multi-pole wiring.

  • Voltage rating: 450V
  • Current rating: 32A
  • Solid conductor: 20-14AWG
  • Stranded conductor: 18-14AWG
  • Strip length: 11mm
  • CCA, CQC, UL, ENEC approved
  • Specification
    Back order lead time 5 Days
    Colour Orange
    Contact material Copper
    Current rating 32A
    Housing material PC
    Mounting type Cable Mount
    Number of ways 2
    Operating temperature 85°C Maximum
    Termination method Spring Lever
    Voltage rating 450V
    Wire range 14-20AWG
