21149NA APEM On-Off-On Low Profile PCB Toggle Switch DPDT 4A 30VDC

by APEM
SKU 487576

MPN: 21149NA

Availability:
119 in stock
Original price £3.75 - Original price £3.75
Original price
£3.75 Inc VAT
£3.75 - £3.75
Current price £3.75 Inc VAT

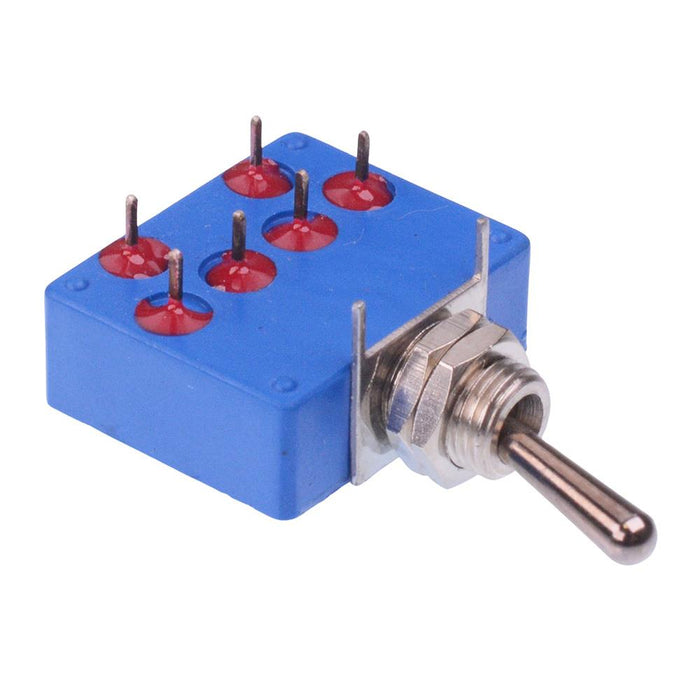

The 21149NA is a low profile momentary toggle switch manufactured by APEM. Featuring a threaded bushing, suitable for PCB mount applications.

  • DPDT contacts
  • On-Off-On operation
  • 6.35mm threaded bushing
  • 6.5mm panel cut-out
  • Silver contacts
  • Rating: 4A 30VDC
  • Epoxy sealed terminals
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration DPDT
    Contact material Silver
    Contact rating 4A 30VDC
    Current rating 4A
    Electrical life 20,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 2
    Number of positions 3
    Operating temperature -40°C to +85°C
    Panel cut out 6.5mm
    Product series 21000N
    Switch operation On-Off-On
    Terminal type Through Hole
    Voltage rating 30VDC
