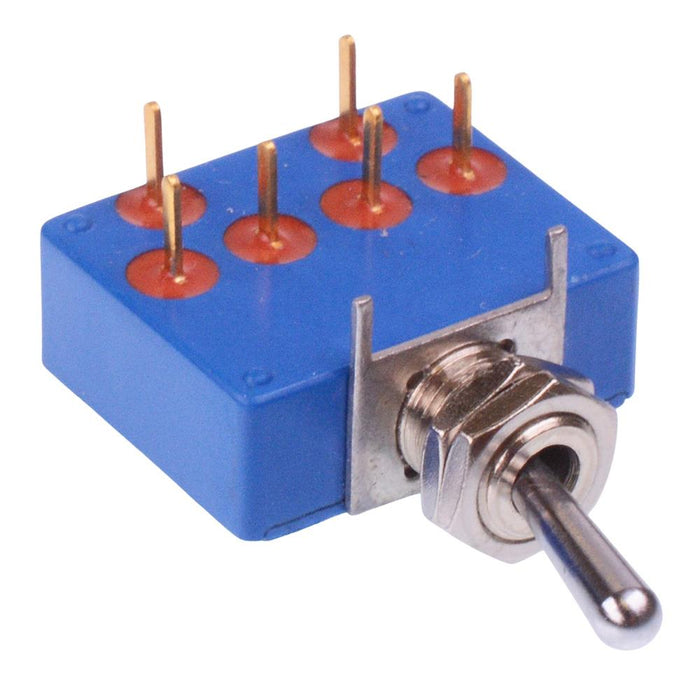

21146NLD APEM On-On Low Profile PCB Toggle Switch DPDT 100mA 30VDC

by APEM
SKU 487844

MPN: 21146NLD

Availability:
20 in stock
Original price £7.47 - Original price £7.47
Original price
£7.47 Inc VAT
£7.47 - £7.47
Current price £7.47 Inc VAT
The 21146NLD is a low profile toggle switch manufactured by APEM. Featuring a threaded bushing, suitable for PCB mount applications.

  • DPDT contacts
  • On-On operation
  • 6.35mm threaded bushing
  • 6.5mm panel cut-out
  • Gold plated brass contacts
  • Rating: 0.1A 30VDC
  • Epoxy sealed terminals
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration DPDT
    Contact material Gold Plated Brass
    Contact rating 0.1A 30VDC
    Current rating 0.1A
    Electrical life 50,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 2
    Number of positions 2
    Operating temperature -40°C to +85°C
    Panel cut out 6.5mm
    Product series 21000N
    Switch operation On-On
    Terminal type Through Hole
    Voltage rating 30VDC
