21138NA APEM On-Off-(On) Momentary Low Profile PCB Toggle Switch SPDT 4A 30VDC
by APEM
SKU 487754
MPN: 21138NA
Availability:
69 in stock
Original price
£3.27
-
Original price
£3.27
Original price
£3.27
Inc VAT
£3.27
-
£3.27
Current price
£3.27
Inc VAT

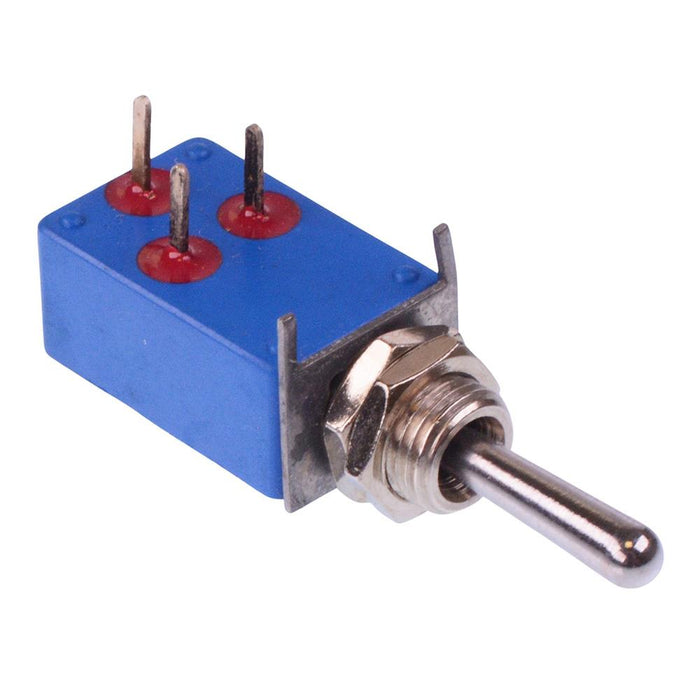

The 21138NA is a low profile toggle switch manufactured by APEM. Featuring a threaded bushing, suitable for PCB mount applications.
SPDT contacts On-Off-(On) momentary operation 6.35mm threaded bushing 6.5mm panel cut-out Silver contacts Rating: 4A 30VDC Epoxy sealed terminals
Specification
| Actuation | Latching / Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPDT |
| Contact material | Silver |
| Contact rating | 4A 30VDC |
| Current rating | 4A |
| Electrical life | 20,000 Cycles |
| Illuminated | No |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 3 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 6.5mm |
| Product series | 21000N |
| Switch operation | On-Off-(On) |
| Terminal type | Through Hole |
| Voltage rating | 30VDC |
