21132NAKX607 APEM On-(On) Momentary Low Profile PCB Toggle Switch SPDT 4A 30VDC

by APEM
SKU 488241

MPN: 21132NAKX607

Availability:
17 in stock
Original price £3.95 - Original price £3.95
Original price
£3.95 Inc VAT
£3.95 - £3.95
Current price £3.95 Inc VAT

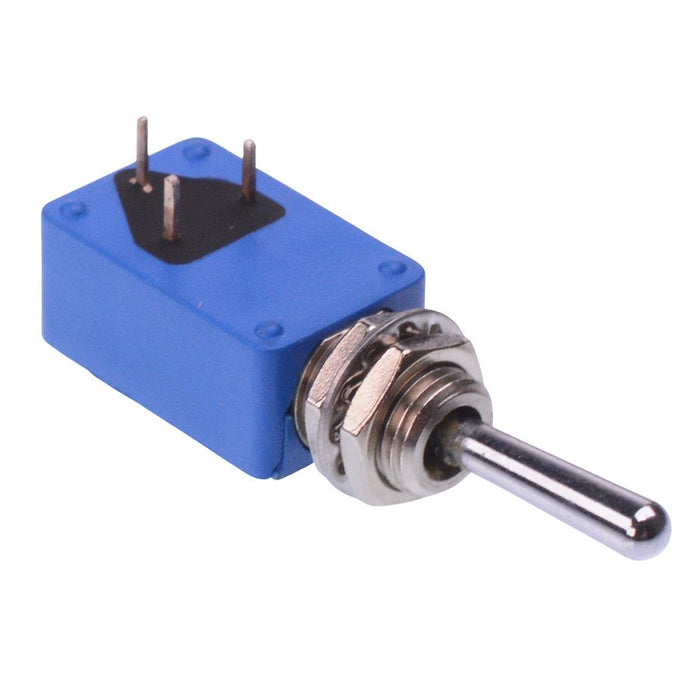

The 21132NAKX607 is a low profile momentary toggle switch manufactured by APEM. Featuring a threaded bushing, suitable for PCB mount applications.

  • SPDT contacts
  • On-(On) momentary operation
  • 6.35mm threaded bushing
  • 6.5mm panel cut-out
  • Silver contacts
  • Rating: 4A 30VDC
  • Epoxy sealed terminals
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration SPDT
    Contact material Silver
    Contact rating 4A 30VDC
    Current rating 4A
    Electrical life 20,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 1
    Number of positions 2
    Operating temperature -40°C to +85°C
    Panel cut out 6.5mm
    Product series 21000N
    Switch operation On-(On)
    Terminal type Through Hole
    Voltage rating 30VDC
