20V Zener Diode 0.5W

SKU 402028

MPN: 402028

Availability:
2273 in stock
Original price £0.08 - Original price £0.08
Original price
£0.08 Inc VAT
£0.08 - £0.08
Current price £0.08 Inc VAT

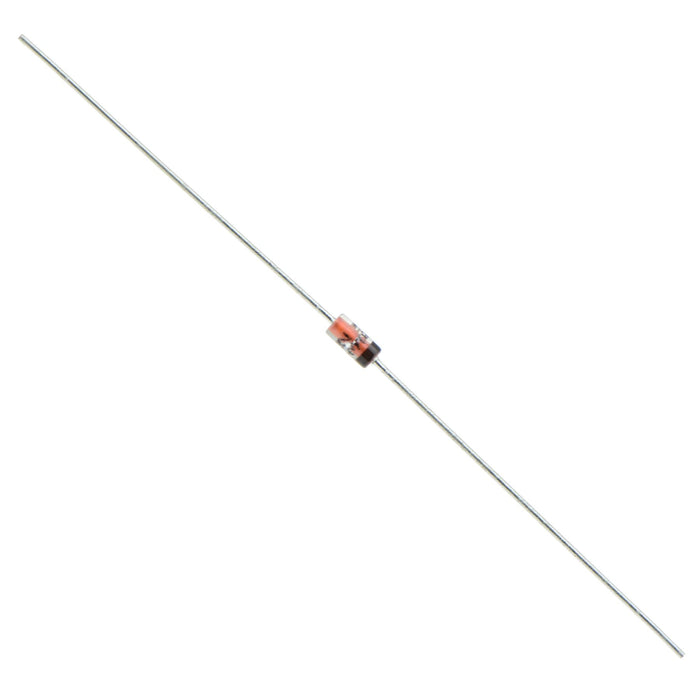

Zener diode with 500mW power dissipation housed in a DO-35 package.

  • Glass encapsulated
  • 5% voltage tolerance
  • Power dissipation: 500mW
  • 0.5mm diameter leads
  • Supplied on tape packaging
  • Specification
    Back order lead time 40 Days
    Body dimensions 3.9 x 1.9mm (Length x Diameter)
    Lead dimensions 27.5 x 0.52mm (Length x Diameter)
    Maximum reverse leakage 0.1μA
    Maximum zener impedance 25Ω
    Moq 10
    Operating temperature 175°C Maximum
    Package DO-35
    Packaging Tape
    Power dissipation 500mW
    Test current 6.2mA
    Zener voltage 20V
    Zener voltage tolerance 5%
