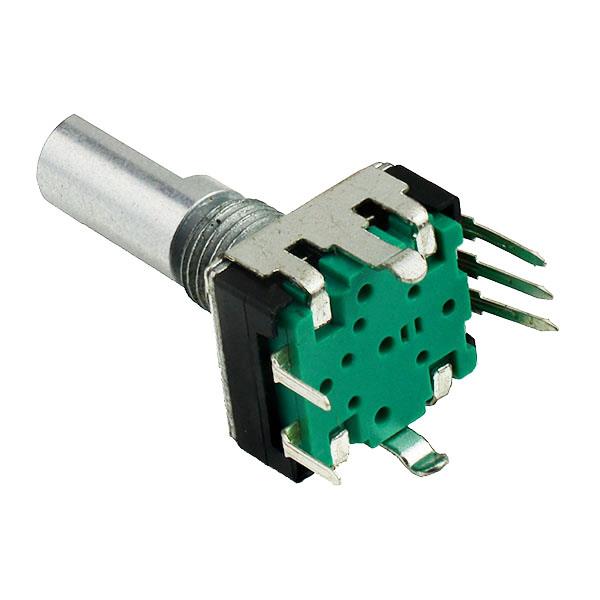

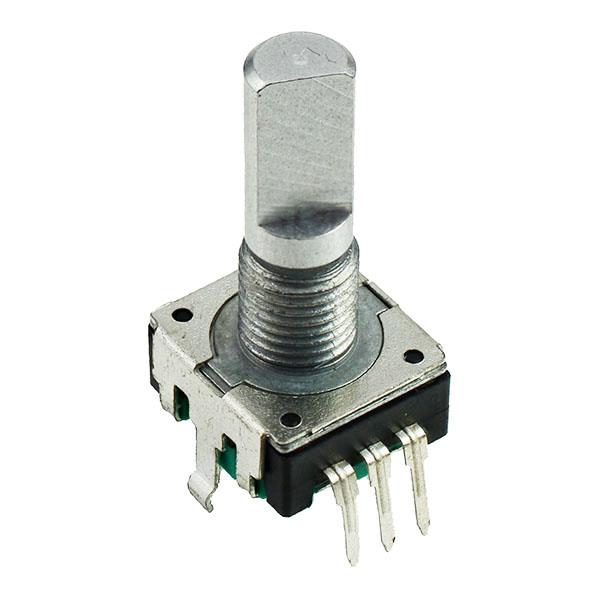

20mm Rotary Encoder with Switch 6mm D Shaft

SKU 482027

MPN: 483364

1847 in stock
Original price £0.90 - Original price £0.90
Original price
£0.90 Inc VAT
£0.90 - £0.90
Current price £0.90 Inc VAT
Switched rotary encoder featuring 24 detents and 360° rotation. The encoder features a D shaft and is used as adjustment controls in radios, TVs, Arduino, Raspberry Pi etc.

  • 20mm actuator length
  • 24 detents
  • Top clickable SPST-NO switch
  • Full 360° rotation
  • 6mm diameter D shaft
  • Rated power: 5VDC 5mA
  • Dimensions: 14 x 13.2 x 29mm (Length x Width x Height)
  • Specification
    Back order lead time 30 Days
    Mounting hole diameter 7mm
    Mounting type Through Hole
    Operating temperature -30°C to +85°C
    Power rating 5VDC 5mA
    Shaft diameter 6mm
    Termination type Solder
    Total rotation 360°
