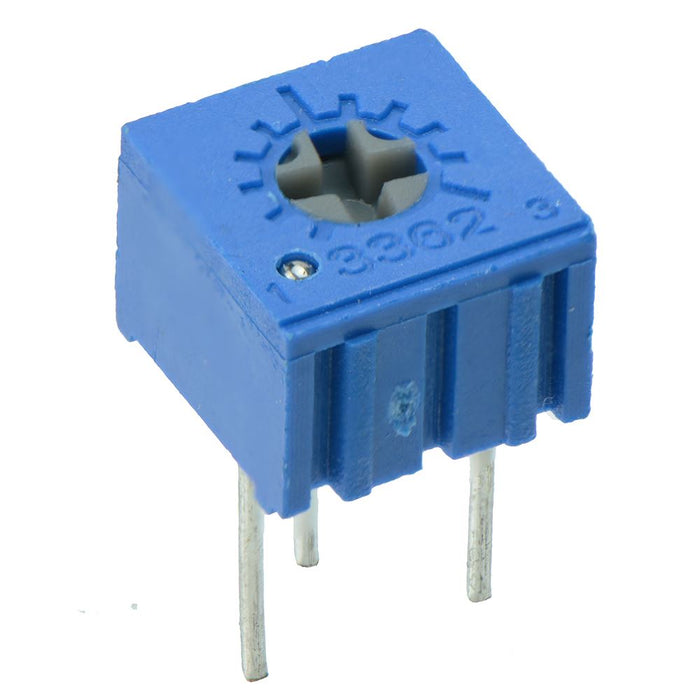

20K 3362 Single Turn Cermet Potentiometer 10% Tolerance
SKU 550354
MPN: 550354
Availability:
672 in stock
Original price
£0.30
-
Original price
£0.30
Original price
£0.30
Inc VAT
£0.30
-
£0.30
Current price
£0.30
Inc VAT
Miniature 3362 top adjusting single turn cermet trimmer featuring excellent stability and a sealed construction.
Resistance 20k Ohm 10% Tolerance Rating 0.5W 6.9mm square package Sealed construction Top adjusting single turn
Specification
| Back order lead time | 30 Days |
| Dimensions | 6.9 x 7.1mm |
| Maximum voltage | 220V |
| Moq | 5 |
| Mounting type | PCB |
| Operating temperature | -55°C to +125°C |
| Pitch | 2.54mm |
| Power rating | 0.5W |
| Resistance | 20KΩ |
| Termination type | Pin |
| Tolerance | ±10% |
| Total rotation | 250° |
