3-Way Female PCB Clamp Terminal Block 9A Wago 2060-453/998-404
by Wago
SKU 482669
MPN: 2060-453/998-404
Availability:
1485 in stock
Original price
£0.90
-
Original price
£0.90
Original price
£0.90
Inc VAT
£0.90
-
£0.90
Current price
£0.90
Inc VAT

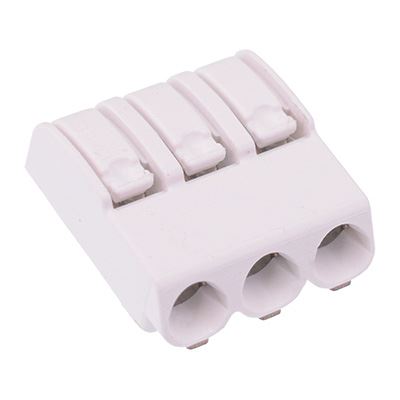

The 2060-453/998-404 is a low profile 3 pole terminal block suitable for both manual and automated wiring systems. The wires are secured by the sprung cage clamp mechanism that accommodates both single and multi-strand cables fitted with ferrules. The terminal blocks can be placed side-by-side to produce multiple way connectors whilst maintaining the same pitch, this makes them suitable for a wide range of PCB applications.
3 way 4mm pin spacing Height: 4.5mm Current rating: 9A Voltage rating: 600V Wire size: 24-18AWG Termination: push-in cage clamp
Specification
| Back order lead time | 5 Days |
| Colour | Grey |
| Contact material | Copper Alloy |
| Current rating | 9A |
| Mounting type | PCB Mount |
| Number of ways | 3 |
| Termination method | Spring Lever |
| Voltage rating | 250V |
| Wire range | 24-18AWG |
