2004-1401 WAGO Grey 4-Way DIN Rail Mount Terminal Block 6mm² 32A

by Wago
SKU 489390

MPN: 2004-1401

Availability:
50 in stock
Original price £1.42 - Original price £1.42
Original price
£1.42 Inc VAT
£1.42 - £1.42
Current price £1.42 Inc VAT

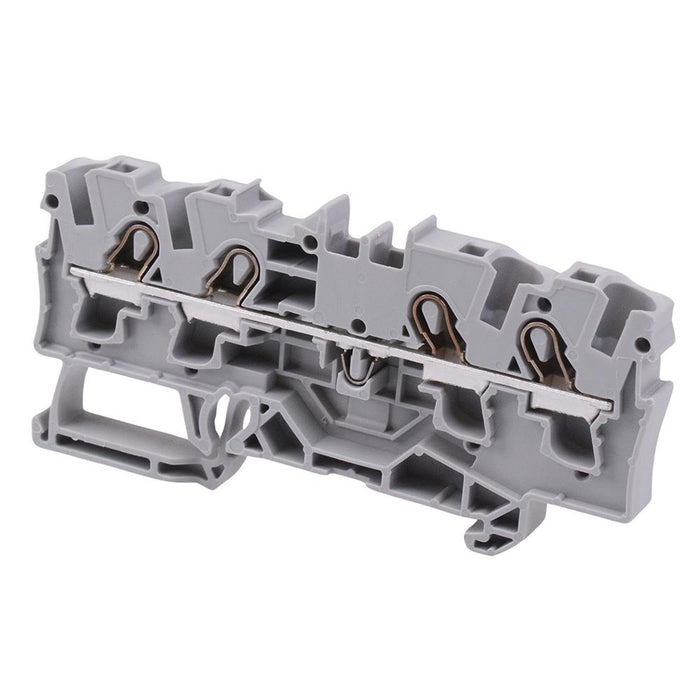

The 2004-1401 is a grey 4 conductor terminal block by WAGO, featuring push-in cage clamp technology compatible with both stranded and solid conductor cable. The terminal block accepts up to 46mm² cable and is suitable for mounting to DIN rail 35.

  • Push-In CAGE CLAMP® technology
  • 35mm DIN rail mounted
  • Front entry wiring
  • Cable size: 0.25mm² - 6mm² / 20AWG - 10AWG
  • Cable strip length: 11mm - 13mm
  • Rated surge voltage: 8kV
  • Nominal voltage: 800V
  • Current rating: 32A
  • Width: 6.2mm
  • Height: 78.7mm
  • Depth from upper-edge of DIN rail: 32.9mm
  • Compatible end plate: 2004-1491
  • Specification
    Back order lead time 5 Days
    Colour Grey
    Contact material Copper
    Current rating 32A
    Housing material PA66
    Mounting type DIN Rail Mount
    Number of ways 4
    Operating temperature -60°C to +105°C
    Termination method Push-In
    Wire range 0.25-6mm²
