2004-1301 WAGO Grey 3-Way DIN Rail Mount Terminal Block 6mm² 32A
by Wago
SKU 489384
MPN: 2004-1301
Availability:
50 in stock
Original price
£1.44
-
Original price
£1.44
Original price
£1.44
Inc VAT
£1.44
-
£1.44
Current price
£1.44
Inc VAT

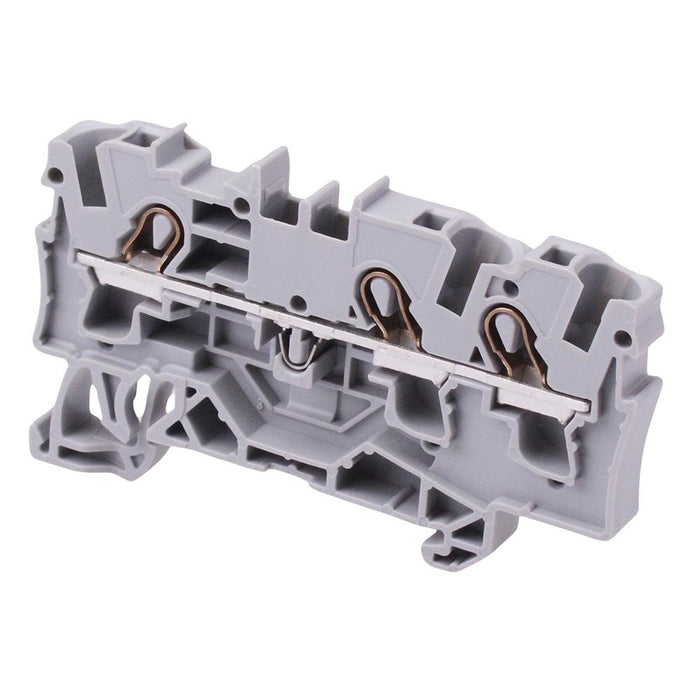

The 2004-1301 is a grey 3 conductor terminal block by WAGO, featuring push-in cage clamp technology compatible with both stranded and solid conductor cable. The terminal block accepts up to 6mm² cable and is suitable for mounting to DIN rail 35.
- Push-In CAGE CLAMP® technology
- 35mm DIN rail mounted
- Front entry wiring
- Cable size: 0.25mm² - 6mm² / 20AWG - 10AWG
- Cable strip length: 11mm - 13mm
- Rated surge voltage: 8kV
- Nominal voltage: 800V
- Current rating: 32A
- Width: 6.2mm
- Height: 65.5mm
- Depth from upper-edge of DIN rail: 32.9mm
- Compatible end plate: 2004-1391
Specification
| Back order lead time | 5 Days |
| Colour | Grey |
| Contact material | Copper |
| Current rating | 32A |
| Housing material | PA66 |
| Mounting type | DIN Rail Mount |
| Number of ways | 3 |
| Operating temperature | -60°C to +105°C |
| Termination method | Push-In |
| Wire range | 0.25-6mm² |
