2002-1401 WAGO Grey 4-Way DIN Rail Mount Terminal Block 4mm² 24A

by Wago
SKU 489373

MPN: 2002-1401

Availability:
93 in stock
Original price £1.49 - Original price £1.49
Original price
£1.49
£1.49 - £1.49
Current price £1.49

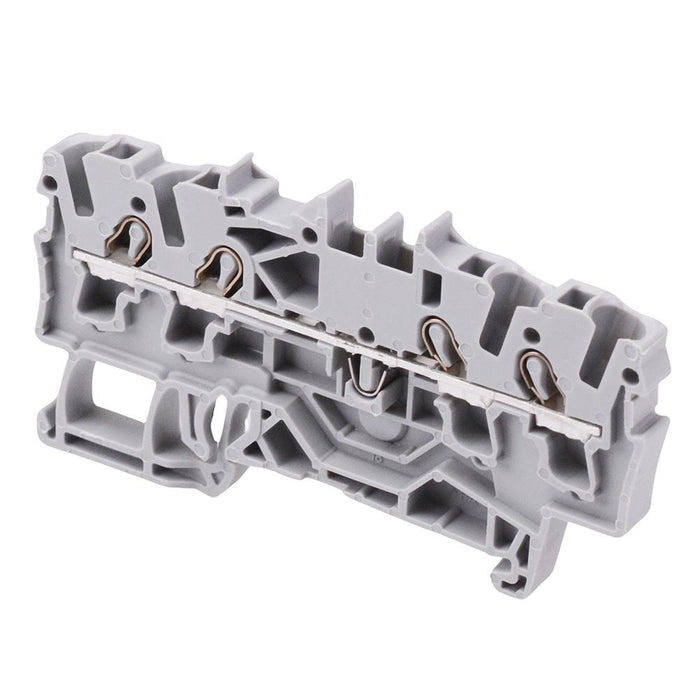

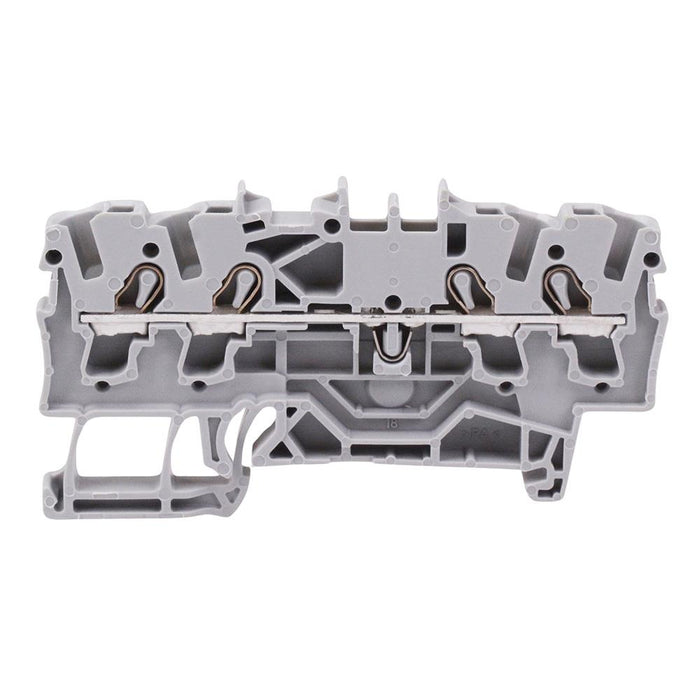

The 2002-1401 is a grey 4 conductor terminal block by WAGO, featuring push-in cage clamp technology compatible with both stranded and solid conductor cable. The terminal block accepts up to 4mm² cable and is suitable for mounting to DIN rail 35.

  • Push-In CAGE CLAMP® technology
  • 35mm DIN rail mounted
  • Front entry wiring
  • Cable size: 0.25mm² - 4mm² / 22AWG - 12AWG
  • Cable strip length: 10mm - 12mm
  • Rated surge voltage: 8kV
  • Nominal voltage: 800V
  • Current rating: 24A
  • Width: 5.2mm
  • Height: 69.9mm
  • Depth from upper-edge of DIN rail: 32.9mm
  • Compatible end plate: 2002-1491
  • Specification
    Back Order Lead Time 5 Days
    Colour Grey
    Contact Material Copper
    Current Rating 24A
    Housing Material PA66
    Mounting Type DIN Rail Mount
    Number of Ways 4
    Operating Temperature -60°C to +105°C
    Termination Method Push-In
    Wire Range 0.25-4mm²
