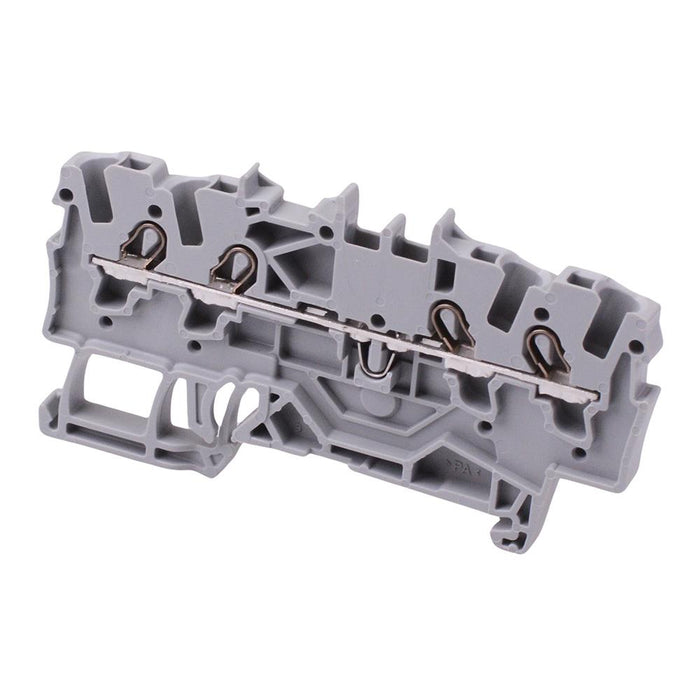

2001-1401 WAGO Grey 4-Way DIN Rail Mount Terminal Block 2.5mm² 17.5A

by Wago
SKU 489366

MPN: 2001-1401

100 in stock
Original price £1.08 - Original price £1.08
Original price
£1.08 Inc VAT
£1.08 - £1.08
Current price £1.08 Inc VAT
The 2001-1401 is a grey 4 conductor terminal block by WAGO, featuring push-in cage clamp technology compatible with both stranded and solid conductor cable. The terminal block accepts up to 2.5mm² cable and is suitable for mounting to DIN rail 35.

  • Push-In CAGE CLAMP® technology
  • 35mm DIN rail mounted
  • Front entry wiring
  • Cable size: 0.25mm² - 2.5mm² / 22AWG - 14AWG
  • Cable strip length: 9mm - 11mm
  • Rated surge voltage: 8kV
  • Nominal voltage: 800V
  • Current rating: 17.5A
  • Width: 4.2mm
  • Height: 69.9mm
  • Depth from upper-edge of DIN rail: 32.9mm
  • Compatible end plate: 2002-1491
  • Specification
    Back order lead time 5 Days
    Colour Grey
    Contact material Copper
    Current rating 17.5A
    Housing material PA66
    Mounting type DIN Rail Mount
    Number of ways 4
    Operating temperature -60°C to +105°C
    Termination method Push-In
    Wire range 0.25-2.5mm²
