2001-1204 WAGO Blue 2-Way DIN Rail Mount Terminal Block 2.5mm² 17.5A
by Wago
SKU 489552
MPN: 2001-1204
Availability:
90 in stock
Original price
£0.82
-
Original price
£0.82
Original price
£0.82
Inc VAT
£0.82
-
£0.82
Current price
£0.82
Inc VAT

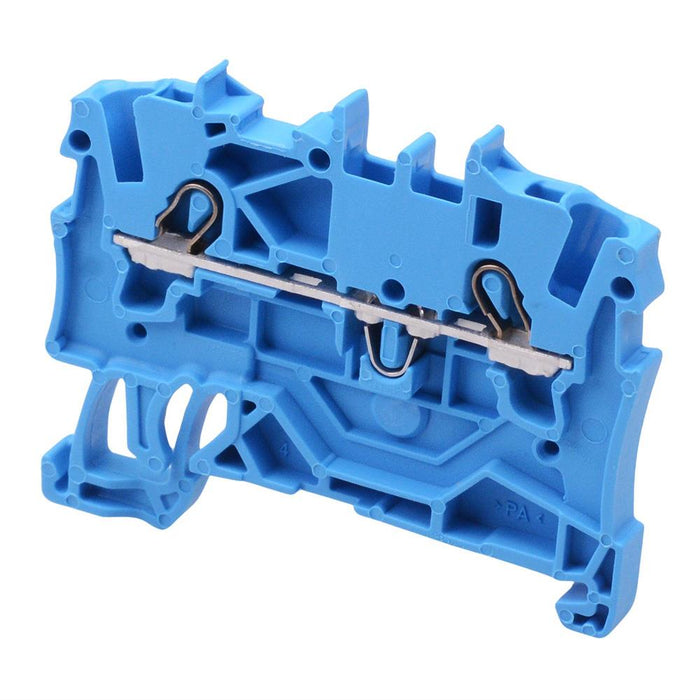

The 2001-1204 is a blue 2 conductor terminal block by WAGO, featuring push-in cage clamp technology compatible with both stranded and solid conductor cable. The terminal block accepts up to 2.5mm² cable and is suitable for mounting to DIN rail 35.
Push-In CAGE CLAMP® technology 35mm DIN rail mounted Front entry wiring Cable size: 0.25mm² - 2.5mm² / 22AWG - 14AWG Cable strip length: 9mm - 11mm Rated surge voltage: 8kV Nominal voltage: 800V Current rating: 17.5A Width: 4.2mm Height: 48.5mm Depth from upper-edge of DIN rail: 32.9mm Compatible end plate: 2002-1291
Specification
| Back order lead time | 5 Days |
| Colour | Blue |
| Contact material | Copper |
| Current rating | 17.5A |
| Housing material | PA66 |
| Mounting type | DIN Rail Mount |
| Number of ways | 2 |
| Operating temperature | -60°C to +105°C |
| Termination method | Push-In |
| Wire range | 0.25-2.5mm² |
