2001-1201 WAGO Grey 2-Way DIN Rail Mount Terminal Block 2.5mm² 17.5A

by Wago
SKU 489553

MPN: 2001-1201

Availability:
100 in stock
Original price £0.79 - Original price £0.79
Original price
£0.79 Inc VAT
£0.79 - £0.79
Current price £0.79 Inc VAT

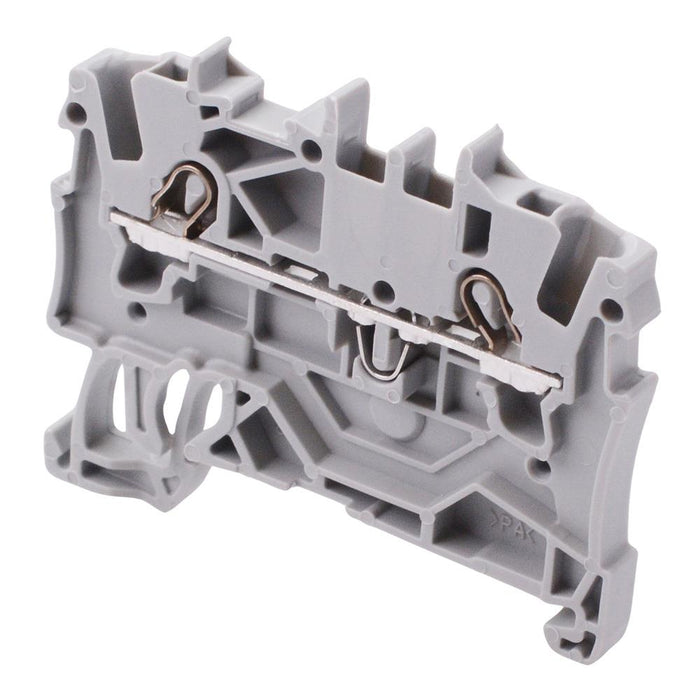

The 2001-1201 is a grey 2 conductor terminal block by WAGO, featuring push-in cage clamp technology compatible with both stranded and solid conductor cable. The terminal block accepts up to 2.5mm² cable and is suitable for mounting to DIN rail 35.

  • Push-In CAGE CLAMP® technology
  • 35mm DIN rail mounted
  • Front entry wiring
  • Cable size: 0.25mm² - 2.5mm² / 22AWG - 14AWG
  • Cable strip length: 9mm - 11mm
  • Rated surge voltage: 8kV
  • Nominal voltage: 800V
  • Current rating: 17.5A
  • Width: 4.2mm
  • Height: 48.5mm
  • Depth from upper-edge of DIN rail: 32.9mm
  • Compatible end plate: 2002-1291
  • Specification
    Back order lead time 5 Days
    Colour Grey
    Contact material Copper
    Current rating 17.5A
    Housing material PA66
    Mounting type DIN Rail Mount
    Number of ways 2
    Operating temperature -60°C to +105°C
    Termination method Push-In
    Wire range 0.25-2.5mm²
