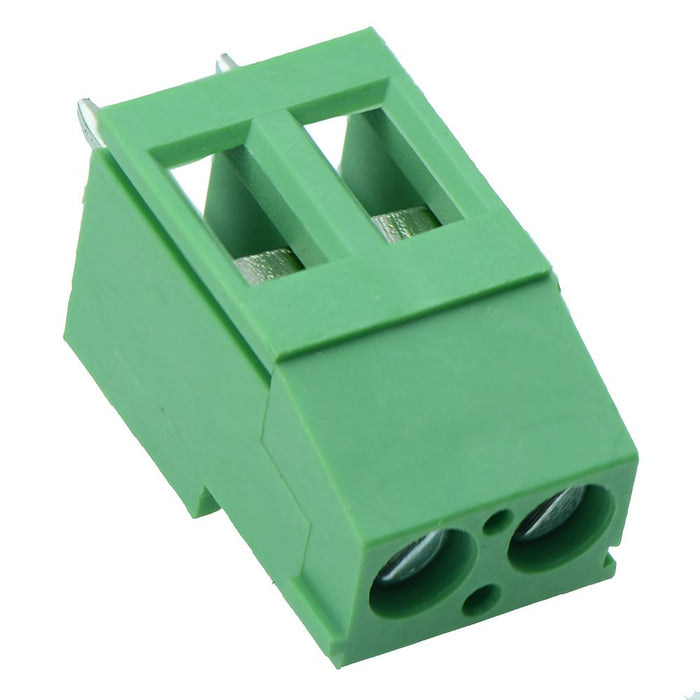

2 Way PCB Terminal Block Connector 5.08mm 20A
SKU 550390
MPN: 550390
Availability:
27 in stock
Original price
£0.45
-
Original price
£0.45
Original price
£0.45
£0.45
-
£0.45
Current price
£0.45
5.08mm pitch terminal block moulded from PA66, suitable for a wide range of applications.
2 Ways 5.08mm Pitch 20A Maximum Current Slotted Screws End Stackable
Specification
| Back Order Lead Time | 30 Days |
| Colour | Green |
| Contact Material | Tin Plated Brass |
| Current Rating | 20A |
| Housing Material | PA66 |
| Mounting Type | PCB Mount |
| Number of Ways | 2 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.08mm |
| Termination Method | Screw |
| Voltage Rating | 300VAC |
| Wire Range | 26-12AWG |
