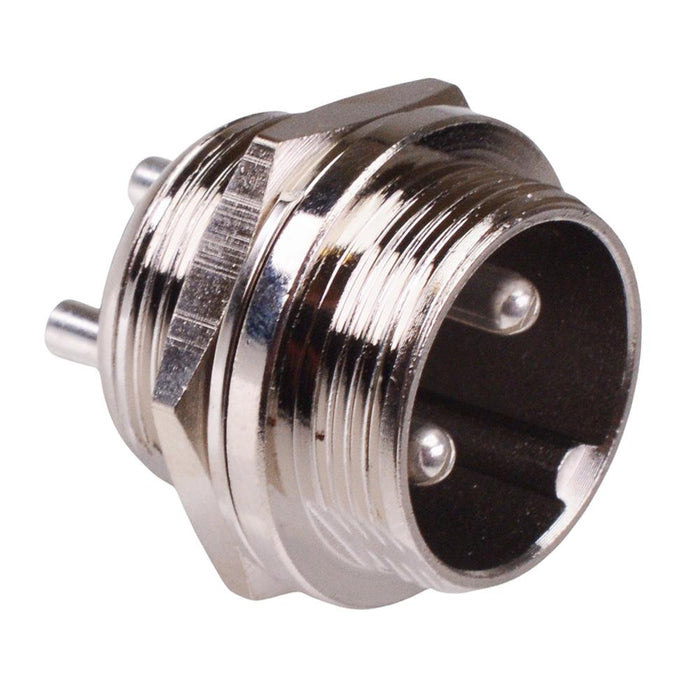

2 Way Male M19 Metal Circular Panel Mount Socket Connector
SKU 488522
MPN: 488522
Availability:
94 in stock
Original price
£1.61
-
Original price
£1.61
Original price
£1.61
£1.61
-
£1.61
Current price
£1.61
2 pole male circular connector featuring a metal body and IP55 protection rating. The socket features an M19 thread and high current rating suitable for a wide range of panel mount applications.
2 ways Rating: 35A 125V Panel cut-out: 19mm Solder contacts Cable diameter: 9.5mm max
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Copper |
| Current Rating | 35A |
| Gender | Male |
| Housing Material | Zinc Alloy |
| Mounting Type | Panel Mount |
| Number of Ways | 2 |
| Operating Temperature | -20°C to +85°C |
| Protection Level | IP55 |
| Termination Method | Solder |
| Thread Size | M19 |
| Voltage Rating | 125V |
| Wire Range | 9.5mm Max |
