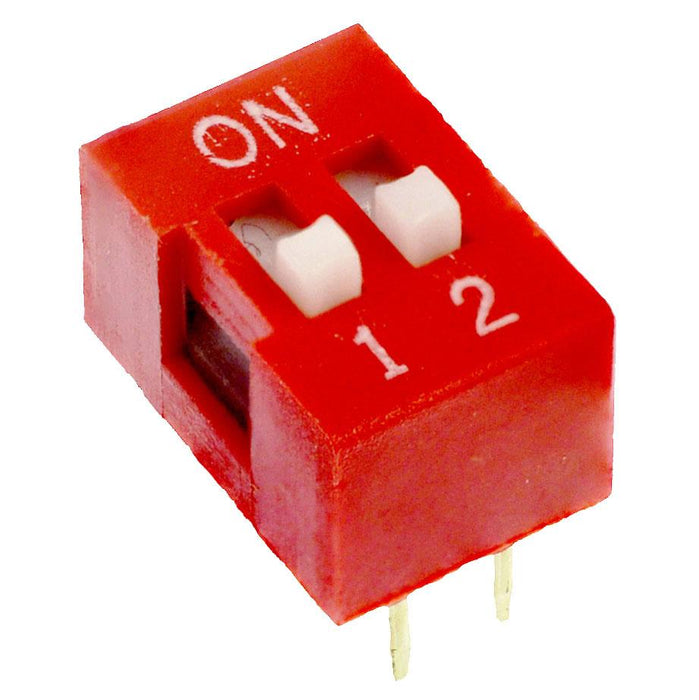

2-Way DIP DIL Red PCB Switch

SKU 124201

MPN: 124201

Availability:
149 in stock
Original price £0.40 - Original price £0.40
Original price
£0.40
£0.40 - £0.40
Current price £0.40
2-Way DIL switch with 2.54mm pitch and gold plated contacts suitable for a range of applications including computers and communications equipment.

  • 2-Ways
  • Vertical mounting
  • SPST contacts
  • Gold plated contacts
  • 2.54mm pitch
  • On/off clearly marked on the switch
  • 25mA maximum switching current
  • 24VDC maximum switching voltage
  • Specification
    Actuation Latching
    Back Order Lead Time 30 Days
    Colour Red
    Contact Configuration SPST
    Contact Material Gold Plated
    Contact Rating 25mA 24VDC
    Current Rating 25mA
    Electrical Life 2,000 Operations
    Material PBT
    Mounting Style Through Hole
    Number of Positions 2
    Number of Ways 2
    Operating Force 9.8N max
    Operating Temperature -20°C to +70°C
    Pitch 2.54mm
    Switch Operation On-Off
    Terminal Type Solder
    Voltage Rating 24VDC
