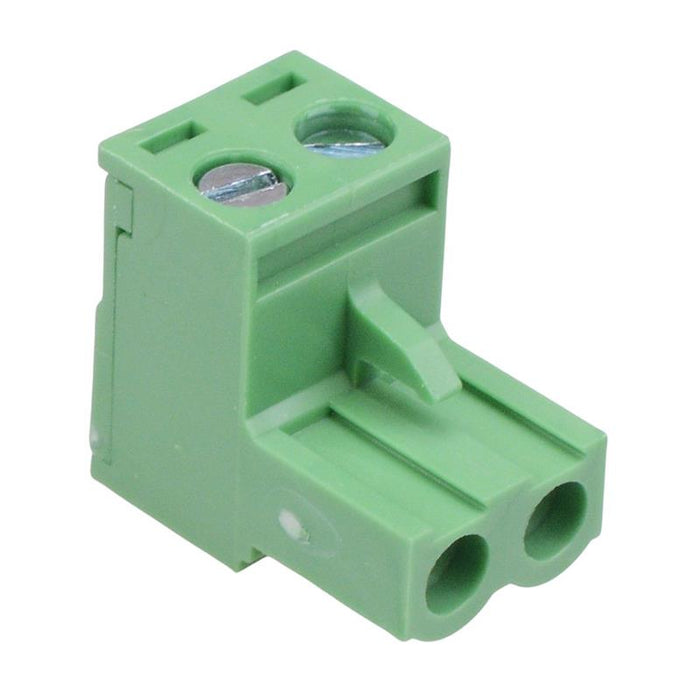

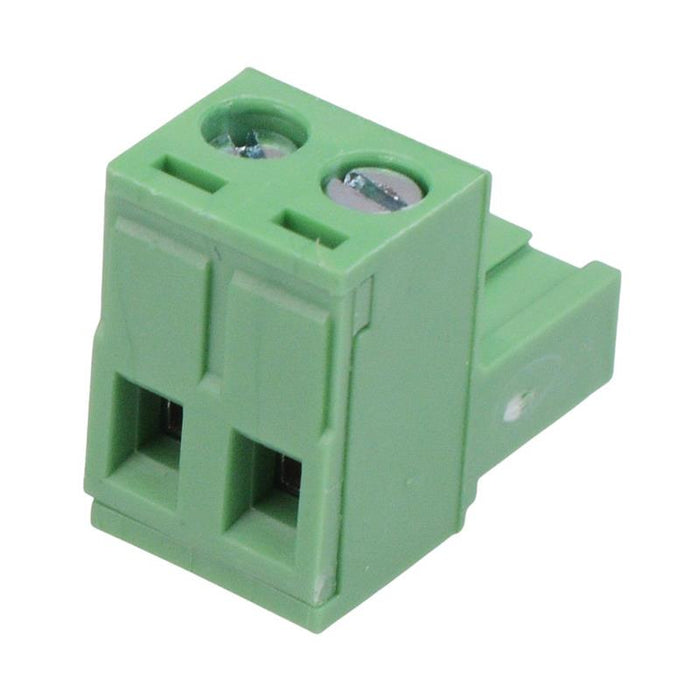

2-Way 5.08mm Right Angle Pluggable Terminal Block 15A 300V
by Degson
SKU 488785
MPN: 2EDGK-5.08-02P14
Availability:
2110 in stock
Original price
£0.28
-
Original price
£0.28
Original price
£0.28
£0.29
£0.29
-
£0.29
Current price
£0.29
2 pole pluggable terminal block by Degson, featuring a 5.08mm pitch and right angle orientation. The terminal blocks are rated up to 15A, suitable for mating with 5.08mm open and closed style PCB headers.
2 pole 5.08mm pitch Right angle Material: PA66 Rating: 15A 300V Wire size: 28-12AWG
Specification
| Back Order Lead Time | 150 Days |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | Cable Mount |
| Number of Ways | 2 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.08mm |
| Termination Method | Screw |
| Voltage Rating | 300V |
| Wire Range | 28-12AWG |
