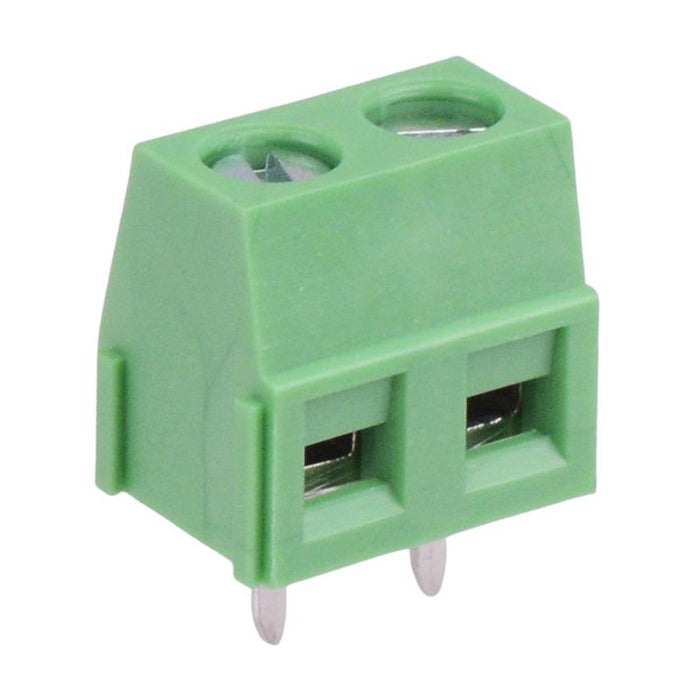

2-Way 5.08mm PCB Terminal Block 12A 300V
by Degson
SKU 488783
MPN: DG127-5.08-02P
Availability:
3597 in stock
Original price
£0.20
-
Original price
£0.20
Original price
£0.20
£0.21
£0.21
-
£0.21
Current price
£0.21
2 pole PCB terminal block by Degson, featuring a 5.08mm pitch and end-stackable design. The terminal blocks are rated up to 12A, suitable for a wide range of PCB through hole applications.
2 pole 5.08mm pitch Vertical orientation Material: PA66 Rating: 12A 300V PCB hole diameter: 1.3mm Height above PCB: 10mm Depth: 8.1mm Wire size: 26-14AWG
Specification
| Back Order Lead Time | 150 Days |
| Contact Material | Copper Alloy |
| Current Rating | 12A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | PCB Mount |
| Number of Ways | 2 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.08mm |
| Termination Method | Through Hole |
| Voltage Rating | 300V |
| Wire Range | 26-14AWG |
