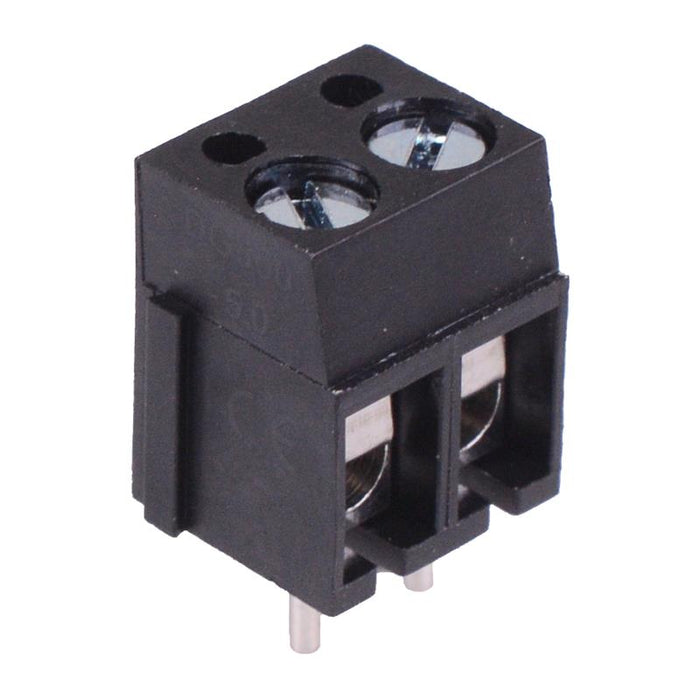

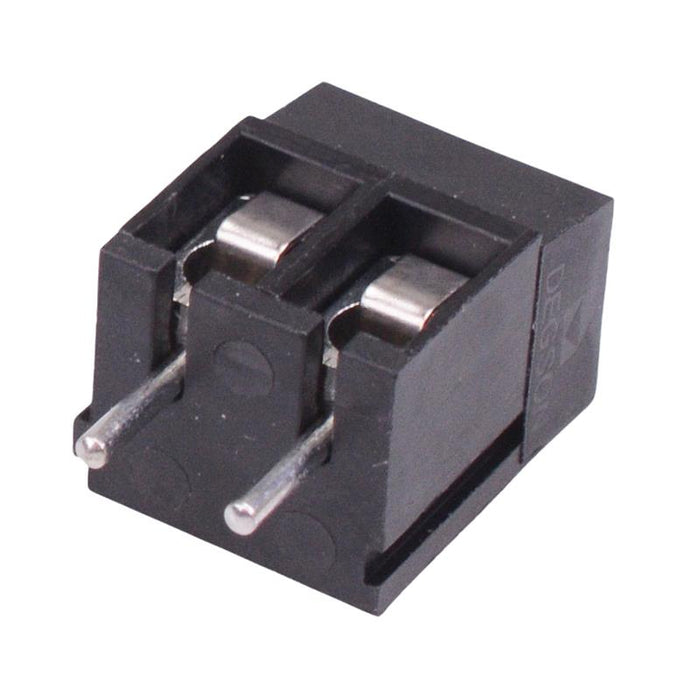

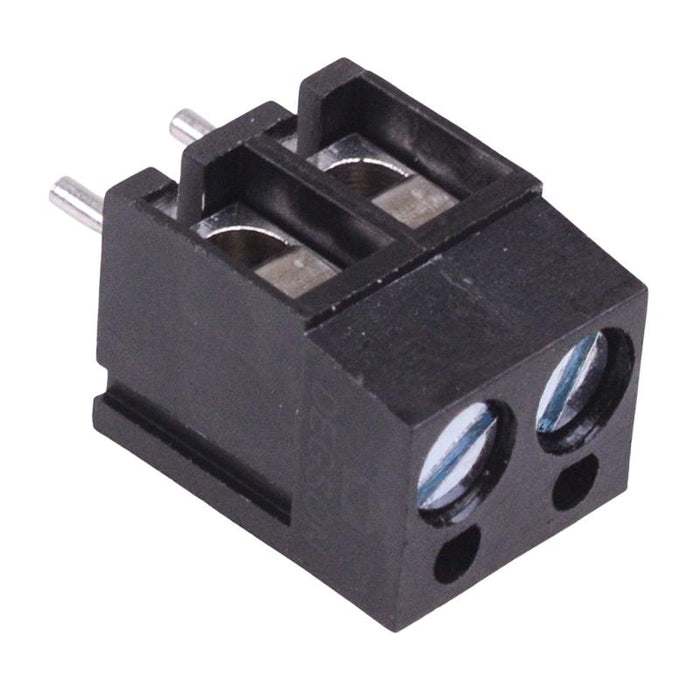

2-Way 5.00mm PCB Terminal Block 10A 300V
by Degson
SKU 488779
MPN: DG300-5.0-02P13
Availability:
2325 in stock
Original price
£0.21
-
Original price
£0.21
Original price
£0.21
£0.22
£0.22
-
£0.22
Current price
£0.22
2 pole PCB terminal block by Degson, featuring a 5.0mm pitch and end-stackable design with test probe facility. The terminal blocks are rated up to 10A, suitable for a wide range of PCB through hole applications.
2 pole 5.00mm pitch Vertical orientation Material: PA66 Rating: 10A 300V PCB hole diameter: 1.2mm Height above PCB: 12.6mm Depth: 9mm Wire size: 22-14AWG
Specification
| Back Order Lead Time | 150 Days |
| Contact Material | Steel |
| Current Rating | 10A |
| Housing Material | PBT |
| MOQ | 1 |
| Mounting Type | PCB Mount |
| Number of Ways | 2 |
| Operating Temperature | -30°C to +120°C |
| Pitch | 5.00mm |
| Termination Method | Through Hole |
| Voltage Rating | 300V |
| Wire Range | 22-14AWG |
