2 Way 4.2mm Mini-Fit Male Housing Connector
SKU 484697
MPN: 484697
Availability:
197 in stock
Original price
£0.16
-
Original price
£0.16
Original price
£0.16
Inc VAT
£0.16
-
£0.16
Current price
£0.16
Inc VAT

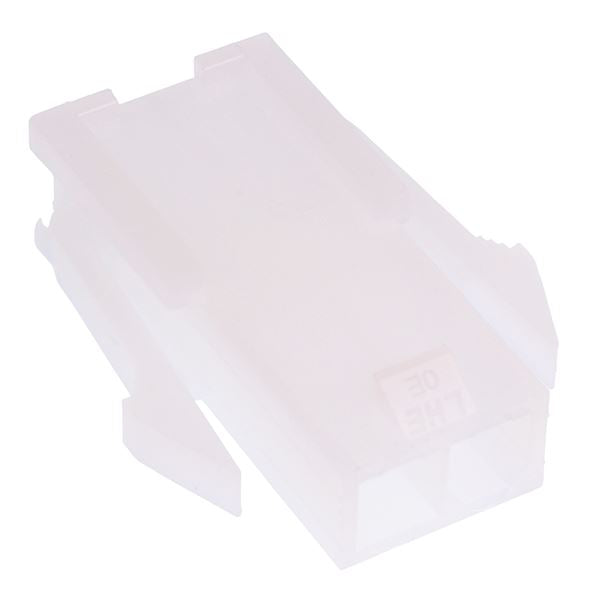

Single row 2 way male housing featuring 4.2mm pitch suitable for mating with a female receptacle. The connector features a lock to ensure secure retention when mated, suitable as a replacement for Molex Mini-Fit.
4.2mm pitch Nylon 66 housing Rated Current: 9A Rated Voltage: 300V Wire range: 16-28AWG
Specification
| Back order lead time | 45 Days |
| Contact material | Tin Plated Brass |
| Current rating | 9A |
| Housing material | PA66 |
| Moq | 5 |
| Mounting type | Cable Mount |
| Number of ways | 2 |
| Operating temperature | -25°C to +85°C |
| Pitch | 4.2mm |
| Termination method | Crimp |
| Voltage rating | 300VAC |
| Wire range | 28-16AWG |
