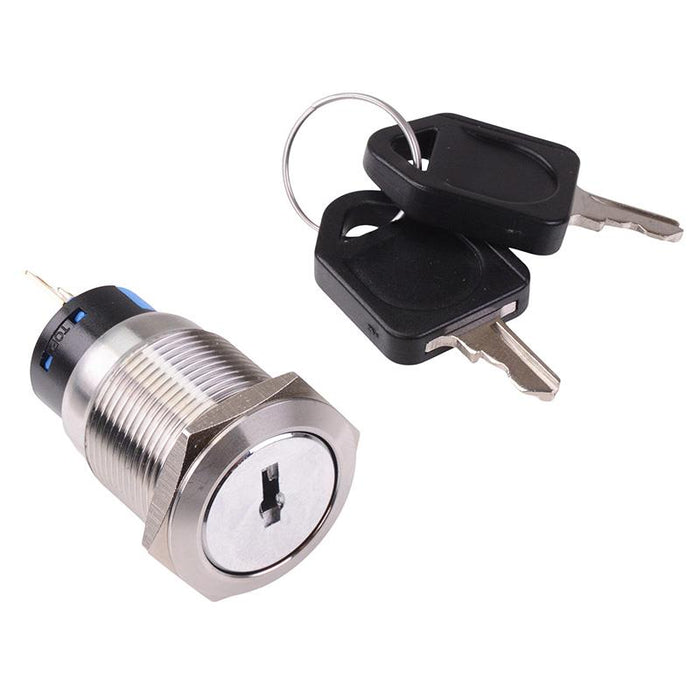

2 Position 19mm Metal Key Switch NO/NC

SKU 486527

MPN: 486527

Availability:
50 in stock
Original price £8.12 - Original price £8.12
Original price
£8.12
£8.12 - £8.12
Current price £8.12
2 position vandal resistant key switch featuring removable keys in both positions, and stainless steel body. The switch features NO/NC contacts and requires a 19mm panel cut-out diameter.

  • NO/NC contacts
  • 2 positions
  • Key removable in both positions
  • 19mm panel cut-out
  • IP65 protection rating
  • Specification
    Actuation Latching
    Back Order Lead Time 45 Days
    Contact Configuration SPDT
    Contact Rating 3A 250VAC
    Current Rating 3A
    Electrical Life 50,000 Cycles
    Key Index Angle 90°
    Key Withdrawal Position 1 & 2
    Material Stainless Steel
    Mounting Style Panel Mount
    Number of Positions 2
    Operating Temperature -20°C to +85°C
    Panel Cut Out 19mm
    Switch Operation On-On
    Voltage Rating 250VAC
