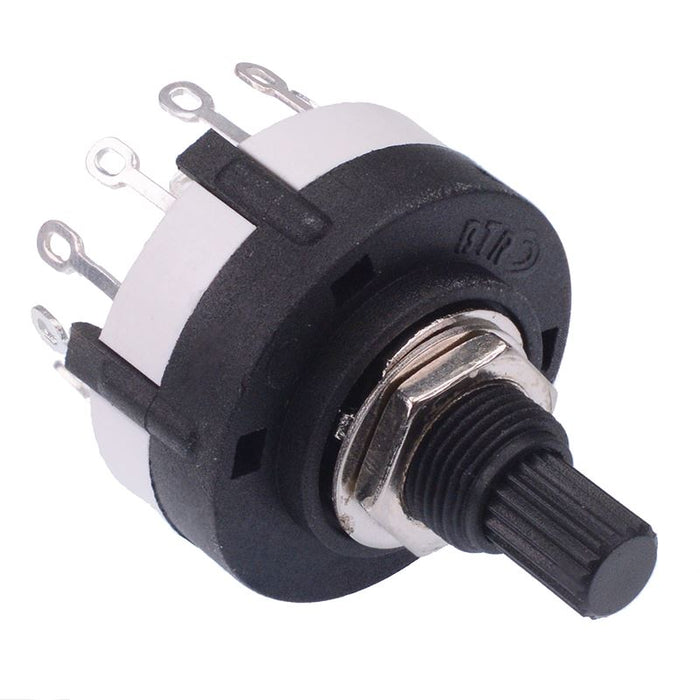

2 Pole 6 Way Rotary Switch Splined Shaft Solder Terminals

SKU 486495

MPN: 486495

Availability:
147 in stock
Original price £1.63 - Original price £1.63
Original price
£1.63
£1.63 - £1.63
Current price £1.63
2 pole break before make rotary switch featuring 6 ways and 18T splined 6mm shaft. The switch features solder terminals and are suitable for a wide range of panel mount applications.

  • 2 pole 6 way
  • 18T splined shaft
  • Solder terminals
  • Break before make
  • 7.5mm shaft length
  • Complete with nut, washer and position stop
  • Dimensions: 36.5 x 26mm (Height x Diameter)
  • Specification
    Back Order Lead Time 30 Days
    Contact Configuration 2P6T
    Contact Rating 2.5A 125VAC, 0.35A 125VDC
    Current Rating 2.5A @ 125VAC
    Electrical Life 15,000 Cycles
    Material Nylon
    Mounting Style Panel
    Number of Poles 2
    Number of Ways 6
    Operating Force 400gf
    Operating Temperature -30°C to +85°C
    Panel Cut Out 10mm
    Terminal Type Solder
    Voltage Rating 125VAC
