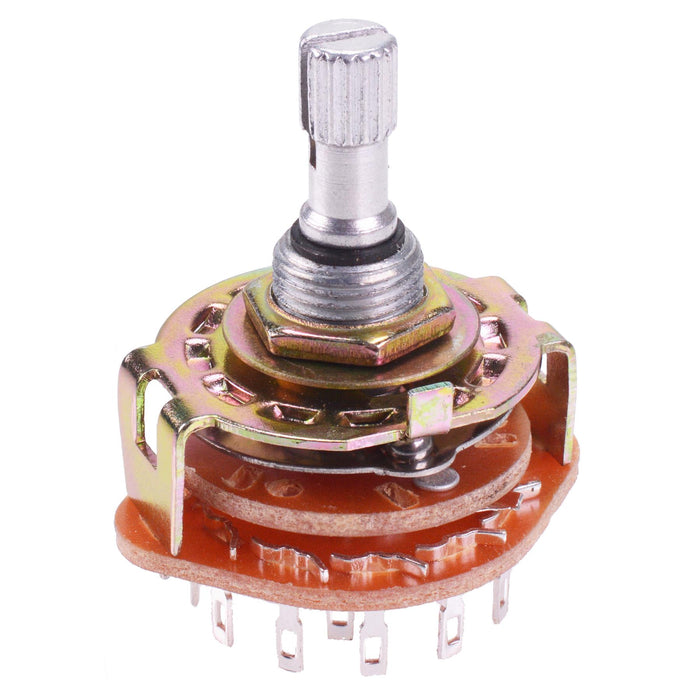

2 Pole 6 Way Rotary Switch 6mm Actuator
SKU 483321
MPN: 483321
Availability:
Out of stock
Sold out
Original price
£1.56
-
Original price
£1.56
Original price
£1.56
£1.56
-
£1.56
Current price
£1.56
2 pole 6 way rotary switch featuring a splined 6mm shaft featuring solder terminals, suitable for panel mount applications.
2 pole 6 position 0.5A 125VAC, 0.3A 250VAC Solder terminals 6mm splined shaft Mounting hole diameter: 9.5mm Dimensions: 39.5 x 31mm (Height x Width)
Specification
| Back Order Lead Time | 45 Days |
| Contact Configuration | 2P6T |
| Contact Rating | 0.5A 125VAC, 0.3A 250VAC |
| Current Rating | 0.5A @ 125VAC |
| Electrical Life | 20,000 Cycles |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Ways | 6 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 9.5mm |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
