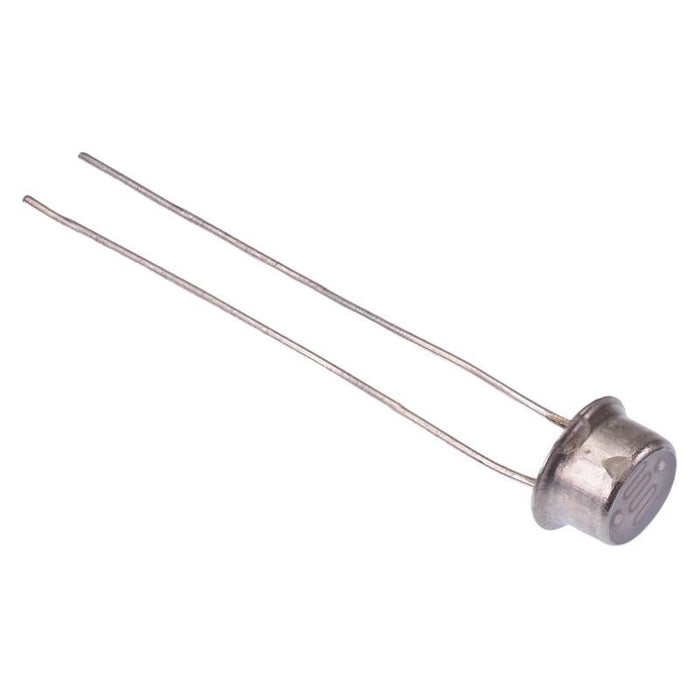

2-6KΩ Photoresistor 100VDC

by Token
SKU 484923

MPN: PGM5506-MP

Availability:
79 in stock
Original price £1.06 - Original price £1.06
Original price
£1.06 Inc VAT
£1.06 - £1.06
Current price £1.06 Inc VAT
2-6K hermetically sealed photoresistor featuring a quick response and reliable performance. The photoresistor is suitable for applications including photoswitch, photoelectric control, auto flash for camera, electronic toys and industrial control.

  • Hermetically sealed
  • Maximum voltage: 100VDC
  • Resistance at 10 lux: 2-6KΩ
  • Dark resistance: 0.15MΩ min
  • Peak spectral: 540nm
  • Lead pitch: 3.4mm
  • Dimensions: 5.5 x 4mm (diameter x height)
  • Specification
    Back order lead time 5 Days
    Mounting style Through Hole
    Peak wavelength 540nm
    Power 90mW
    Resistance at 10lx 2-6k
    Supply voltage 100VDC
    Request a quote
