2.5mm x 5.5mm Push Fit Panel Mount DC Socket Connector

SKU 482000

MPN: 482000

Availability:
859 in stock
Original price £0.28 - Original price £0.28
Original price
£0.28
£0.28 - £0.28
Current price £0.28

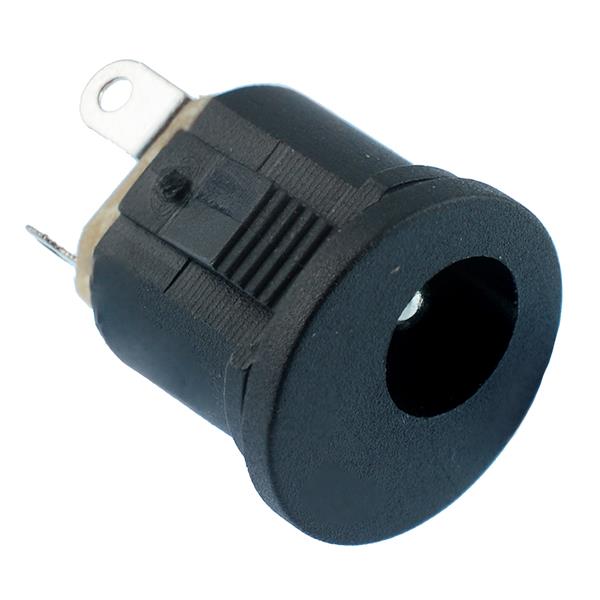

DC power socket featuring a 2.5mm pin suitable for panel mount applications with a low voltage.

  • 2.5mm x 5.5mm size
  • Solder lug termination
  • Panel cut-out: 12mm
  • Current rating: 1A
  • Voltage rating: 30VDC
  • Suitable for panel thickness up to 8mm
  • Dimensions: 18 x 13.6mm (Length x Diameter)
  • Specification
    Back Order Lead Time 30 Days
    Colour Black
    Contact Material Nickel Plated Copper
    Contact Rating 1A 30VDC
    Housing Material PBT
    Inner Diameter 2.5mm
    Mounting Type Panel
    Number of Pins 2
    Operating Temperature -30°C to +70°C
    Outer Diameter 5.5mm
    Panel Cut Out 12mm
    Termination Method Solder
