2.5mm x 5.5mm Panel Mount DC Socket

SKU 551671

MPN: 551671

Availability:
538 in stock
Original price £0.29 - Original price £0.29
Original price
£0.29 Inc VAT
£0.29 - £0.29
Current price £0.29 Inc VAT

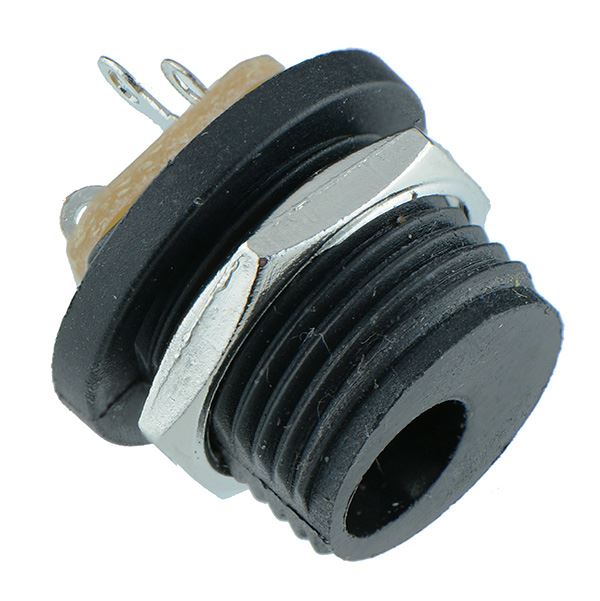

Round DC power socket featuring a 2.5mm centre pin suitable for panel mount applications.

  • Size: 2.5mm x 5.5mm
  • Rating: 30VDC 1A
  • Panel cut-out: 12mm
  • Moulded from PBT
  • Maximum panel thickness: 9mm
  • Specification
    Back order lead time 30 Days
    Colour Black
    Contact material Nickel Plated Copper
    Contact rating 1A 30VDC
    Housing material PBT
    Inner diameter 2.5mm
    Mounting type Panel
    Number of pins 3
    Operating temperature -30°C to +70°C
    Outer diameter 5.5mm
    Panel cut out 12mm
    Termination method Solder
