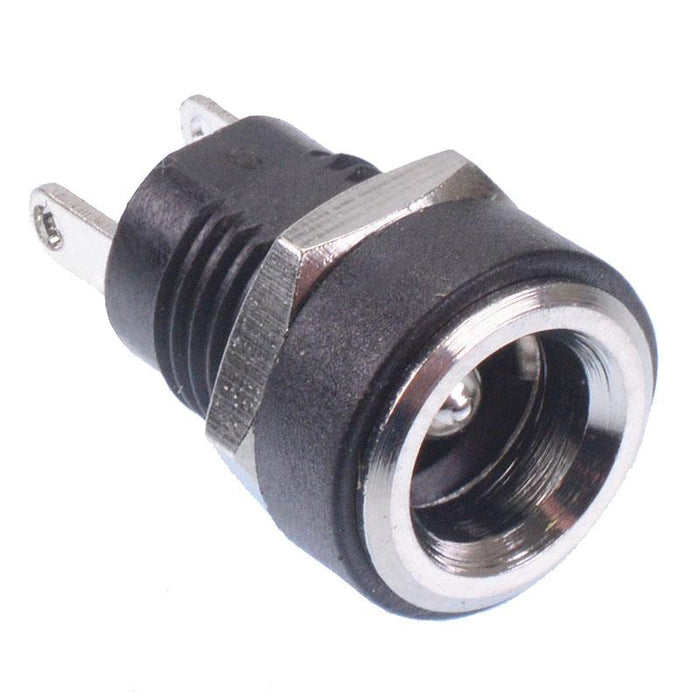

2.5mm x 5.5mm Panel Mount DC Power Socket DC-022B
SKU 210012
MPN: 210012
Availability:
1450 in stock
Original price
£0.55
-
Original price
£0.55
Original price
£0.55
Inc VAT
£0.55
-
£0.55
Current price
£0.55
Inc VAT
Panel mounting DC power sockets suitable for applications where limited space requires a socket with smaller dimensions.2.5mm x 5.5mm size Solder lug termination Panel cut-out: 8mm Current rating: 0.5A Voltage rating: 30VDC Suitable for panel thickness up to 4mm Dimensions: 18.2 x 10.2mm (Length x Diameter) Supplied with fixing nut
Specification
| Back order lead time | 30 Days |
| Colour | Black |
| Contact material | Nickel Plated Brass |
| Contact rating | 0.5A 30VDC |
| Housing material | PBT |
| Inner diameter | 2.5mm |
| Mounting type | Panel |
| Number of pins | 2 |
| Operating temperature | -30°C to +70°C |
| Outer diameter | 5.5mm |
| Panel cut out | 8mm |
| Termination method | Solder |
