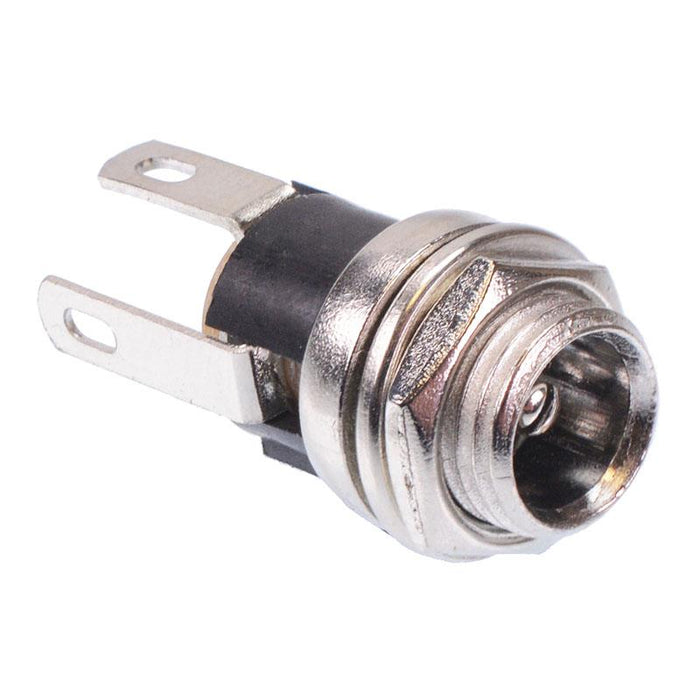

2.5mm x 5.5mm Metal Panel Mount DC Power Socket
SKU 210007
MPN: 210007
Availability:
3419 in stock
Original price
£0.43
-
Original price
£0.43
Original price
£0.43
Inc VAT
£0.43
-
£0.43
Current price
£0.43
Inc VAT
Metal panel mounting DC power sockets suitable for a wide range of electronic applications.
2.5mm x 5.5mm size Solder lug termination Panel cut-out: 8mm Current rating: 1A Voltage rating: 30VDC Supplied with washer and nut
Specification
| Back order lead time | 30 Days |
| Colour | Silver |
| Contact material | Nickel Plated Copper |
| Contact rating | 1A 30VDC |
| Housing material | PBT |
| Inner diameter | 2.5mm |
| Mounting type | Panel |
| Number of pins | 3 |
| Operating temperature | -30°C to +70°C |
| Outer diameter | 5.5mm |
| Panel cut out | 8mm |
| Termination method | Solder |
