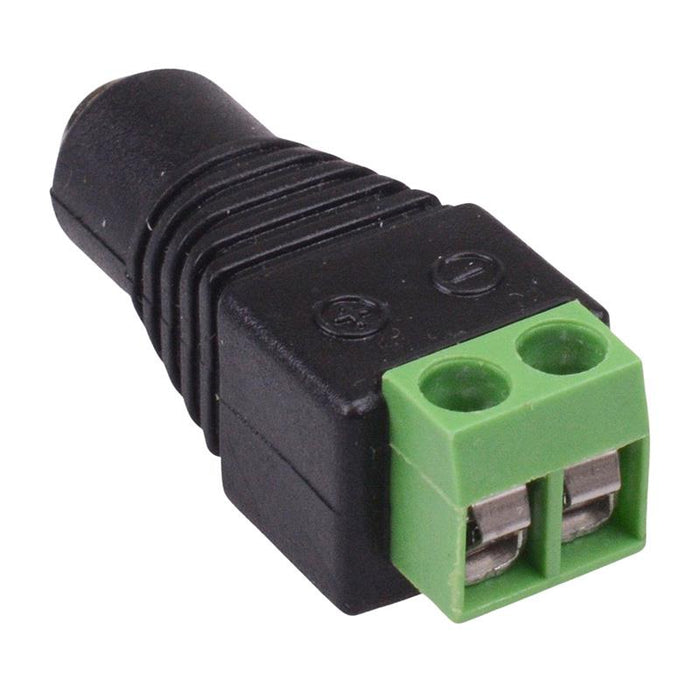

2.5mm Female Socket Jack DC Connector with Screw Terminals
SKU 489164
MPN: PT-003A-TX
Availability:
956 in stock
Original price
£0.46
-
Original price
£0.46
Original price
£0.46
Inc VAT
£0.46
-
£0.46
Current price
£0.46
Inc VAT
2.5mm female DC socket with screw terminals and 5.5mm barrel diameter designed for easy wiring without the need for soldering.
Size: 2.5mm x 5.5mm Positive screw terminals Barrel length: 12mm Rating: 12VDC 5A
Specification
| Back order lead time | 120 Days |
| Barrel length | 12mm |
| Colour | Black |
| Contact rating | 5A 12VDC |
| Inner diameter | 2.5mm |
| Mounting type | Wire |
| Number of pins | 2 |
| Operating temperature | -30°C to +70°C |
| Outer diameter | 5.5mm |
| Termination method | Screw |
