2.1mm x 5.5mm SMT DC Power Square Socket

SKU 483041

MPN: 483041

573 in stock
Original price £0.29 - Original price £0.29
Original price
£0.29 Inc VAT
£0.29 - £0.29
Current price £0.29 Inc VAT

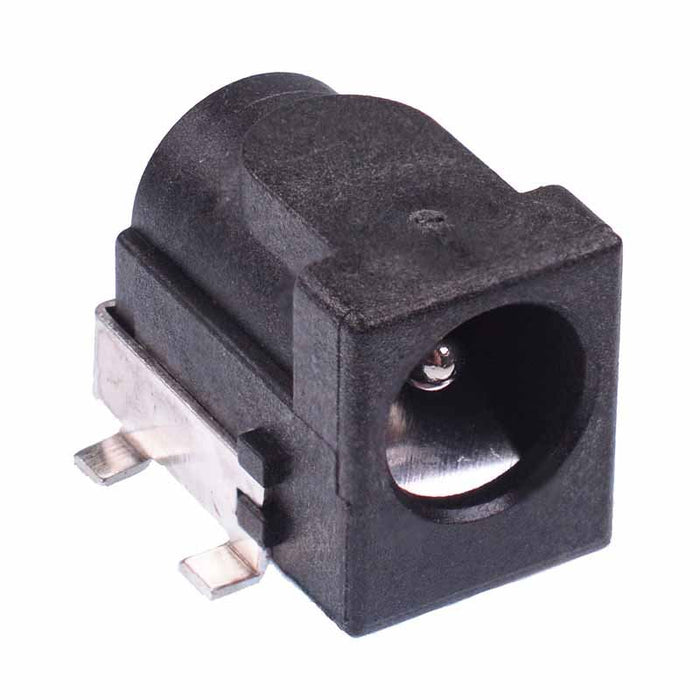

DC power jack connector featuring a 2.1mm center pin suitable for mounting horizontally to a PCB.

  • Size: 2.1mm x 5.5mm
  • Solder contacts
  • 2*pin supports
  • Rating: 0.5A 30VDC
  • Dimensions: 14.8 x 11 x 9mm (Length x Height x Width)
  • Specification
    Back order lead time 30 Days
    Colour Black
    Contact material Silver Plated Brass
    Contact rating 0.5A 30VDC
    Housing material PA9T
    Inner diameter 2.1mm
    Mounting type PCB
    Number of pins 4
    Operating temperature -30°C to +70°C
    Outer diameter 5.5mm
    Termination method Solder
