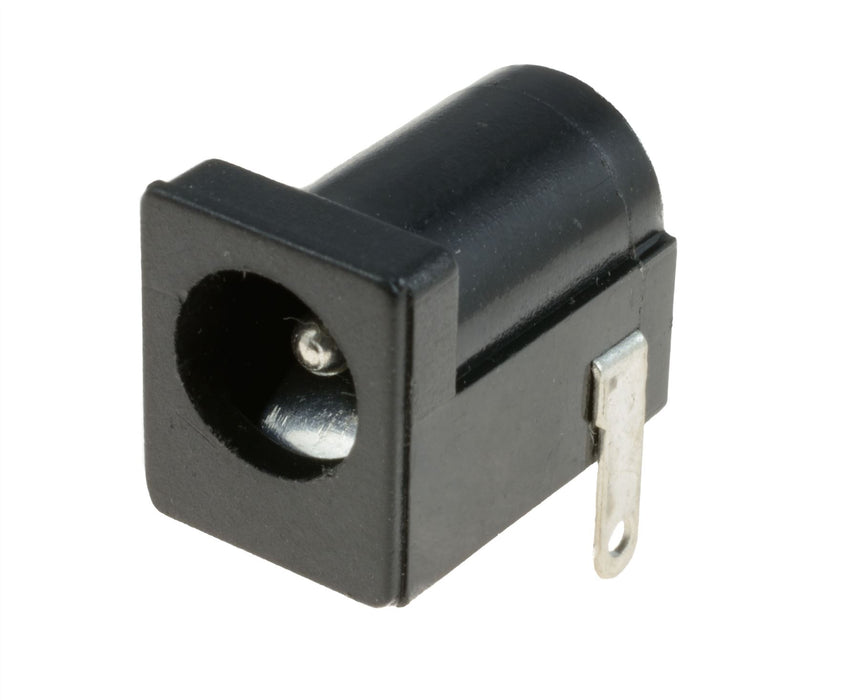

2.1mm x 5.5mm PCB DC Power Square Socket

2.1mm x 5.5mm PCB DC Power Square Socket

by Switch Electronics
SKU 210005

MPN: 210005

Availability:
2412 in stock
£0.24 - £0.24
£0.24
£0.24 - £0.24
£0.24
Low cost PCB mounting DC power socket suitable for a range of low current applications.

  • 2.1mm x 5.5mm size
  • Right angle type
  • Solder lug termination
  • Single pole switch
  • 2A current rating
  • Voltage rating: 16VDC
    • Download Product Data Sheet PDF
    Specification
    Back Order Lead Time 30 Days
    Colour Black
    Contact Material Nickel Plated Copper
    Contact Rating 2A 16VDC
    Housing Material PBT
    Inner Diameter 2.1mm
    Mounting Type PCB
    Number of Pins 3
    Operating Temperature -30°C to +70°C
    Outer Diameter 5.5mm
    Termination Method Solder
    Request a quote

    Customer Reviews

    Based on 1 review
    0%
    (0)
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    E
    Evan

    Fits the connector well, footprint is well documented so PCB design is easy. Unfortunately only 2A but I'm going to try and push it to 3A for extremely short periods. Feels like it will last a while.
