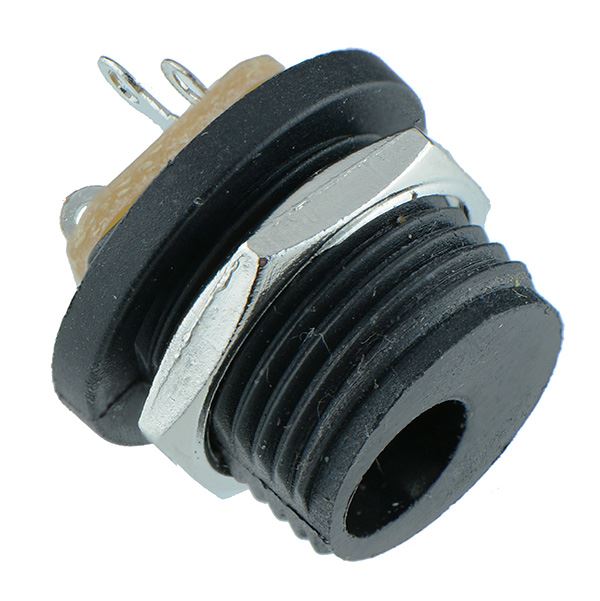

2.1mm x 5.5mm Panel Mount DC Socket

SKU 551670

MPN: 551670

Availability:
215 in stock
Original price £0.29 - Original price £0.29
Original price
£0.29
£0.29 - £0.29
Current price £0.29
Round DC power socket featuring a 2.1mm centre pin suitable for panel mount applications.

  • Size: 2.1mm x 5.5mm
  • Rating: 30VDC 1A
  • Panel cut-out: 12mm
  • Moulded from PBT
  • Maximum panel thickness: 9mm
  • Specification
    Back Order Lead Time 30 Days
    Colour Black
    Contact Material Nickel Plated Copper
    Contact Rating 1A 30VDC
    Housing Material PBT
    Inner Diameter 2.1mm
    Mounting Type Panel
    Number of Pins 3
    Operating Temperature -30°C to +70°C
    Outer Diameter 5.5mm
    Panel Cut Out 12mm
    Termination Method Solder
