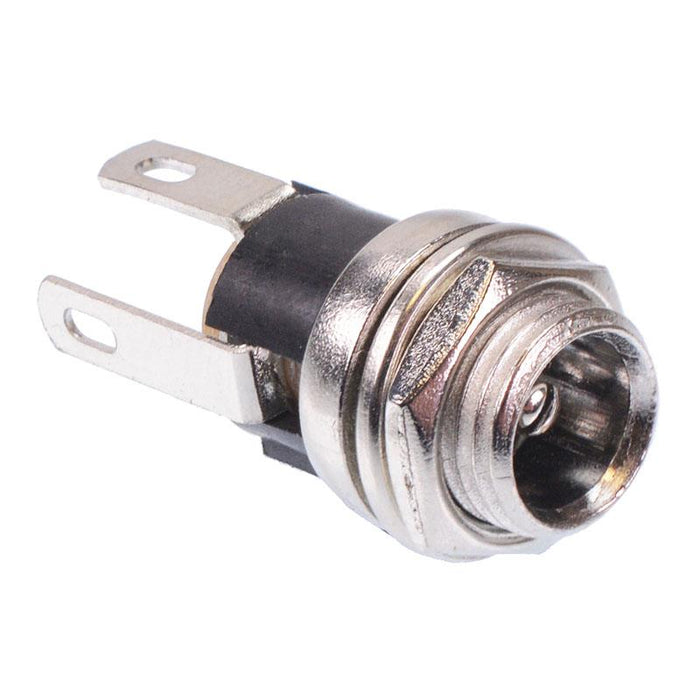

2.1mm x 5.5mm Metal Panel Mount DC Power Socket

SKU 210006

MPN: 210006

Availability:
3780 in stock
Original price £0.42 - Original price £0.42
Original price
£0.42 Inc VAT
£0.42 - £0.42
Current price £0.42 Inc VAT
Metal panel mounting DC power sockets suitable for a wide range of electronic applications.

  • 2.1mm x 5.5mm size
  • Solder lug termination
  • Panel cut-out: 8mm
  • Current rating: 1A
  • Voltage rating: 30VDC
  • Supplied with washer and nut
  • Specification
    Back order lead time 30 Days
    Colour Silver
    Contact material Nickel Plated Copper
    Contact rating 1A 30VDC
    Housing material PBT
    Inner diameter 2.1mm
    Mounting type Panel
    Number of pins 3
    Operating temperature -30°C to +70°C
    Outer diameter 5.5mm
    Panel cut out 8mm
    Termination method Solder
