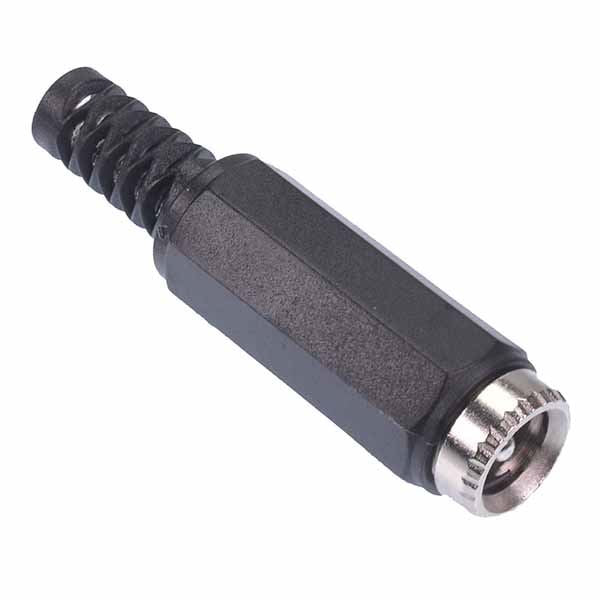

2.1mm x 5.5mm DC Power Inline Socket
SKU 483568
MPN: 483568
Availability:
69 in stock
Original price
£0.81
-
Original price
£0.81
Original price
£0.81
Inc VAT
£0.81
-
£0.81
Current price
£0.81
Inc VAT
High quality DC socket connector featuring a 2.1mm center pin and moulded PVC handle. The sockets have a 3A current rating and are suitable for a wide range of DC applications.
Size: 2.1mm x 5.5mm Straight orientation PVC handle Brass contact 0.5A-3A 100VDC rating Solder contacts Dimensions: 39.7 x 10.2mm (length x diameter)
Specification
Back order lead time | 30 Days |
Colour | Black |
Contact material | Brass |
Contact rating | 0.5A-3A/100VDC |
Housing material | PVC |
Inner diameter | 2.1mm |
Mounting type | Wire |
Number of pins | 2 |
Operating temperature | -30°C to +60°C |
Outer diameter | 5.5mm |
Termination method | Solder |
