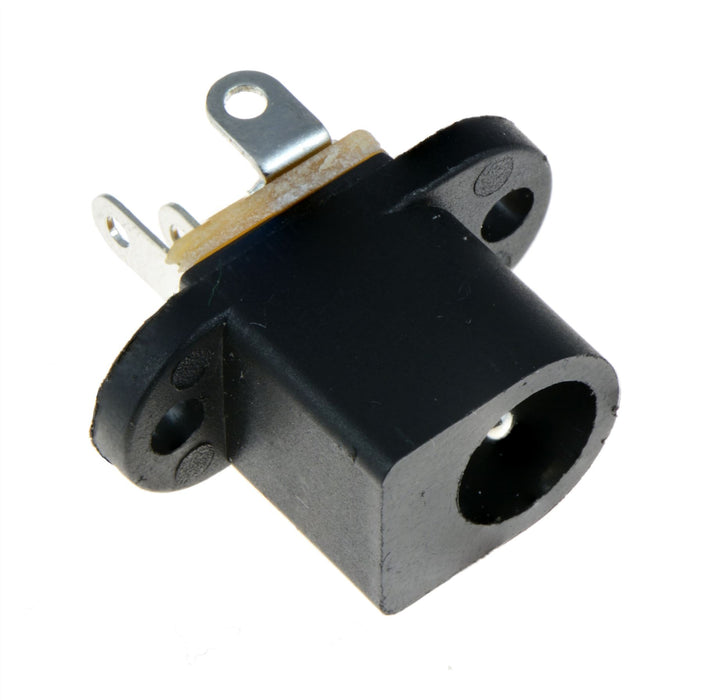

2.1mm Chassis Mounting DC Power Socket Connector

SKU 210054

MPN: 210054

Availability:
452 in stock
Original price £0.22 - Original price £0.22
Original price
£0.22 Inc VAT
£0.22 - £0.22
Current price £0.22 Inc VAT
Chassis mounting DC power socket with switched contacts and 2 mounting holes. The socket fits 2.1mm plugs and features solder terminals making it suitable for a wide range of applications.

  • Size: 2.1mm x 5.5mm
  • Mounting holes 16mm apart
  • Solder contacts
  • Maximum current: 2A
  • Maximum voltage: 16VDC
  • Specification
    Back order lead time 30 Days
    Colour Black
    Contact material Nickel Plated Copper
    Contact rating 2A 16VDC
    Housing material PBT
    Inner diameter 2.1mm
    Mounting type PCB
    Number of pins 3
    Operating temperature -30°C to +70°C
    Outer diameter 5.5mm
    Termination method Solder
