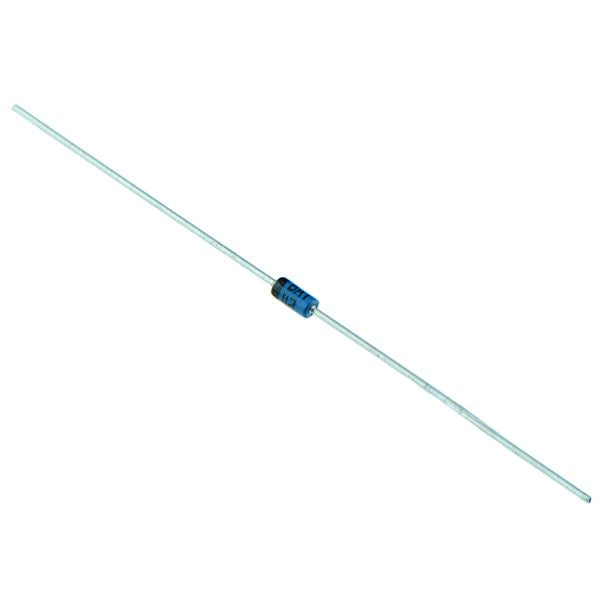

1N5711 Small Signal Schottky Diode 70V 15mA

by ST
SKU 480685

MPN: 1N5711

Availability:
Only 3 left!
Original price £0.24 - Original price £0.24
Original price
£0.24 Inc VAT
£0.24 - £0.24
Current price £0.24 Inc VAT
The 1N5711 is a metal to silicone small signal schottky junction diode featuring high break down, low turn-on voltage and ultrafast switching. The diode is primarily intended for high level UHF/VHF detection and pulse applications with broad dynamic range.

  • DO-35 package
  • Repetitive peak reverse voltage: 70V
  • Forward continuous current: 15mA
  • Power dissipation: 430mW
  • Specification
    Back order lead time 5 Days
    Body dimensions 3.4 x 1.5mm (Length x Diameter)
    Forward continuous current 15mA
    Lead dimensions 28 x 0.55mm (Length x Diameter)
    Moq 5
    Mounting style Through Hole
    Operating temperature -65°C to 200°C
    Package DO-35
    Packaging Tape
    Peak reverse voltage 70V
    Power dissipation 430mW
