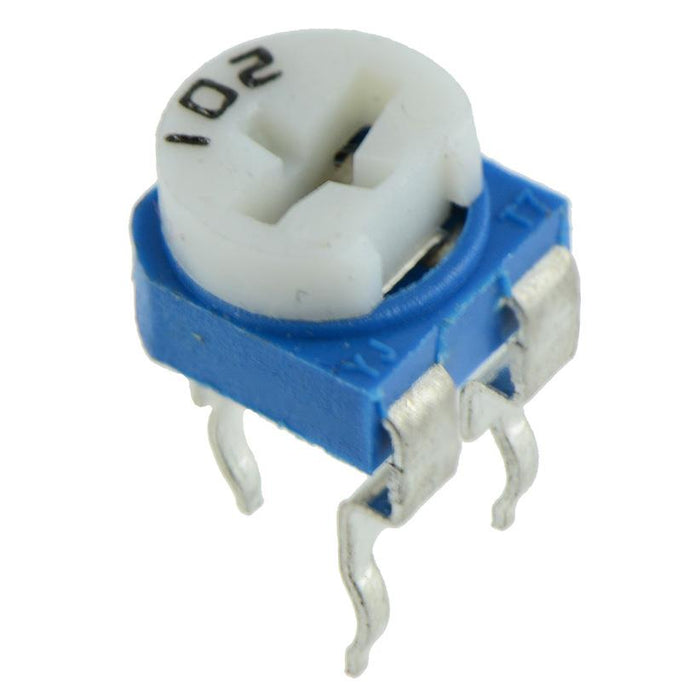

1M 6mm Horizontal Preset Trimmer Potentiometer

SKU 485627

MPN: 485627

Availability:
1555 in stock
Original price £0.29 - Original price £0.29
Original price
£0.29 Inc VAT
£0.29 - £0.29
Current price £0.29 Inc VAT
1M cermet trimmer potentiometers with a 210° rotation and 0.1W rated power suitable for horizontal PCB mounting.

  • 1M linear
  • 0.1W rated power
  • Low rotation torque
  • Specification
    Back order lead time 30 Days
    Maximum voltage 50VDC
    Moq 5
    Mounting type PCB
    Operating temperature -25°C to +70°C
    Pitch 5mm
    Power rating 0.1W
    Resistance 1MΩ
    Taper Linear
    Termination type Pin
    Tolerance ±20%
    Total rotation 210°
    Request a quote
