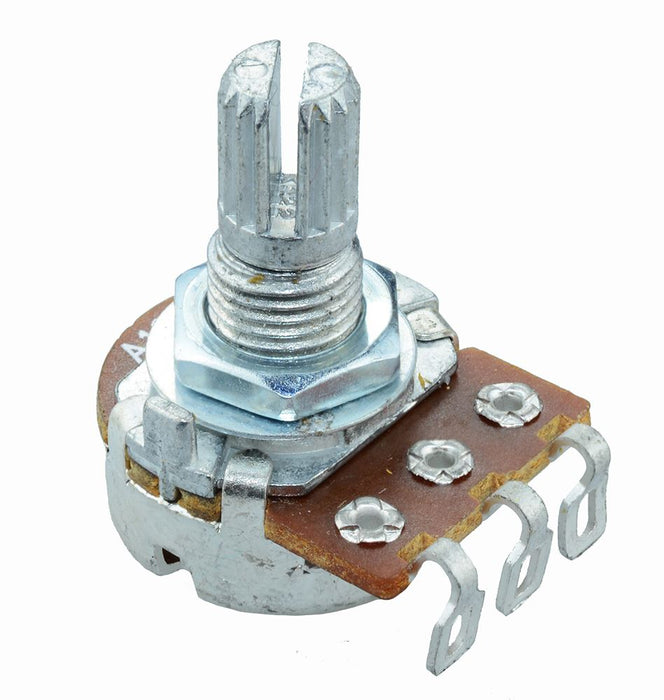

1K Linear 16mm Potentiometer Solder Lugs
SKU 133040
MPN: 133040
Availability:
895 in stock
Original price
£0.46
-
Original price
£0.46
Original price
£0.46
Inc VAT
£0.46
-
£0.46
Current price
£0.46
Inc VAT
16mm potentiometers with a splined 6mm shaft and solder contacts.
1k linear Standard 16mm diameter size Solder lug contacts 20% tolerance Panel cut-out: 7mm 5mm pitch 15mm shaft length
Specification
| Back order lead time | 45 Days |
| Dimensions | 17mm Diameter |
| Maximum voltage | 200V |
| Mounting hole diameter | 7mm |
| Mounting type | Panel Mount |
| Operating temperature | -25°C to +70°C |
| Pitch | 5mm |
| Power rating | 0.125W |
| Resistance | 1KΩ |
| Shaft diameter | 6mm |
| Taper | Linear |
| Termination type | Solder Lug |
| Tolerance | ±20% |
| Total rotation | 300° |
