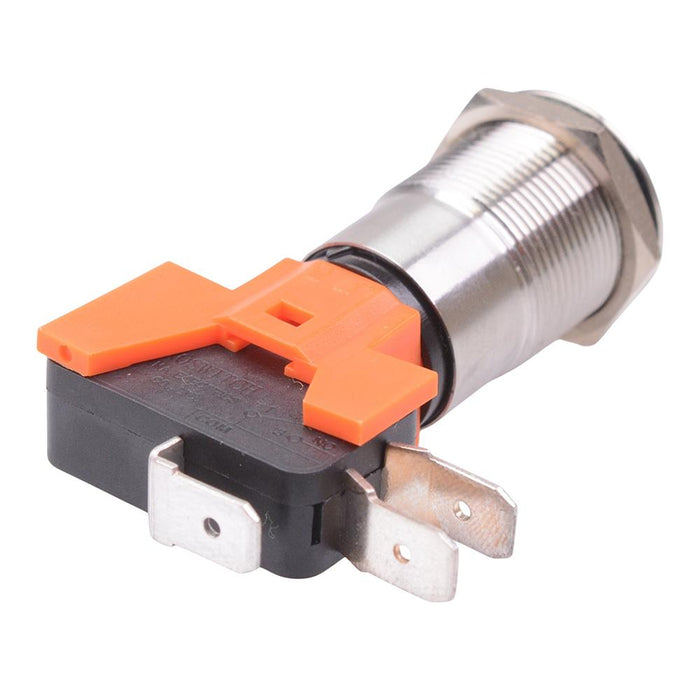

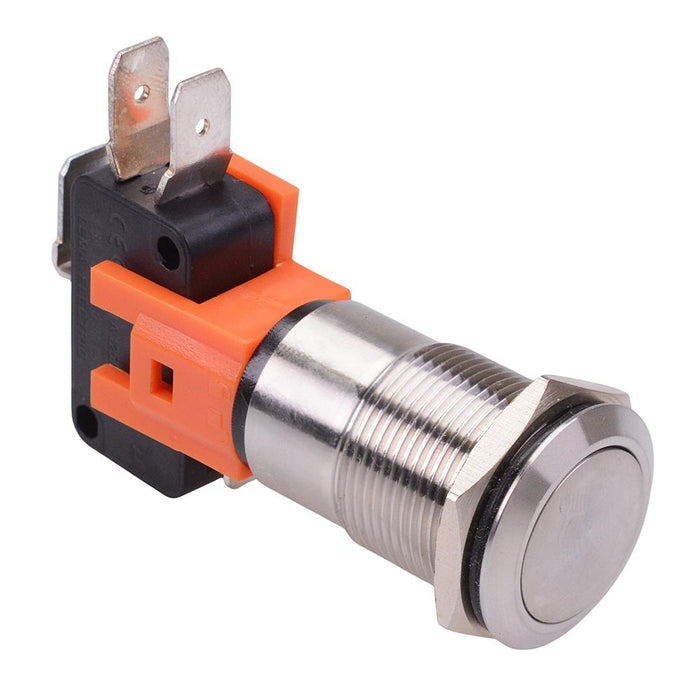

19mm Latching Vandal Resistant Push Button Switch SPDT 21A

by Langir
SKU 482240

MPN: L19BFZ321S

Availability:
44 in stock
Original price £15.82 - Original price £15.82
Original price
£15.82 Inc VAT
£15.82 - £15.82
Current price £15.82 Inc VAT
Vandal resistant latching metal push button switch featuring NO/NC contacts. The switch features IP67 protection and is suitable for high current 12V applications.

  • Latching On-On action
  • IP67 protection rating
  • 19mm panel cut-out diameter
  • NO/NC contacts
  • Solder terminals
  • Rating: 21A 250VAC
  • Specification
    Actuation Latching
    Back order lead time 45 Days
    Contact configuration SPDT
    Contact rating 21A 250VAC
    Current rating 21A
    Electrical life 50,000+ Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Material Stainless Steel
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 19mm
    Protection level IP65
    Switch operation On-On
    Terminal type Quick Connect
    Voltage rating 250VAC
