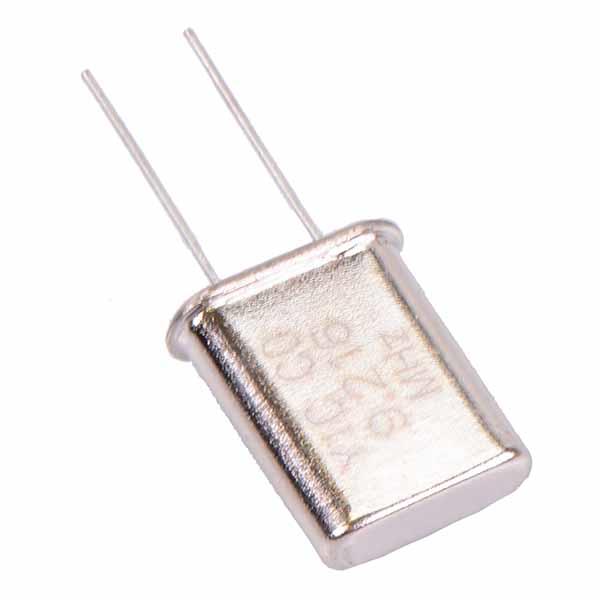

18MHz HC49/U Quartz Crystal Resonator
SKU 482463
MPN: 482463
Availability:
60 in stock
Original price
£0.59
-
Original price
£0.59
Original price
£0.59
Inc VAT
£0.59
-
£0.59
Current price
£0.59
Inc VAT
18MHz crystal resonator featuring a ±30ppm tolerance, housed in a HC49/U standard package. The crystals are suitable for a wide range of frequency applications.
Body Dimensions: 13.2 x 11 x 3.8m (Height x Width x Depth) Terminal pitch: 4.88mm Tolerance: ±30ppm Excellent ageing stability
Specification
Back order lead time | 5 Days |
Frequency | 18MHz |
Mounting style | Through Hole |
Number of pins | 2 |
Operating temperature | -20°C to +70°C |
Pitch | 4.88mm |
Tolerance | ±30ppm |
