18845CD On-(On) Momentary Panel Mount Push Button Switch DPDT 0.1A 30VDC
by APEM
SKU 489775
MPN: 18845CD
Availability:
154 in stock
Original price
£6.88
-
Original price
£6.88
Original price
£6.88
Inc VAT
£6.88
-
£6.88
Current price
£6.88
Inc VAT

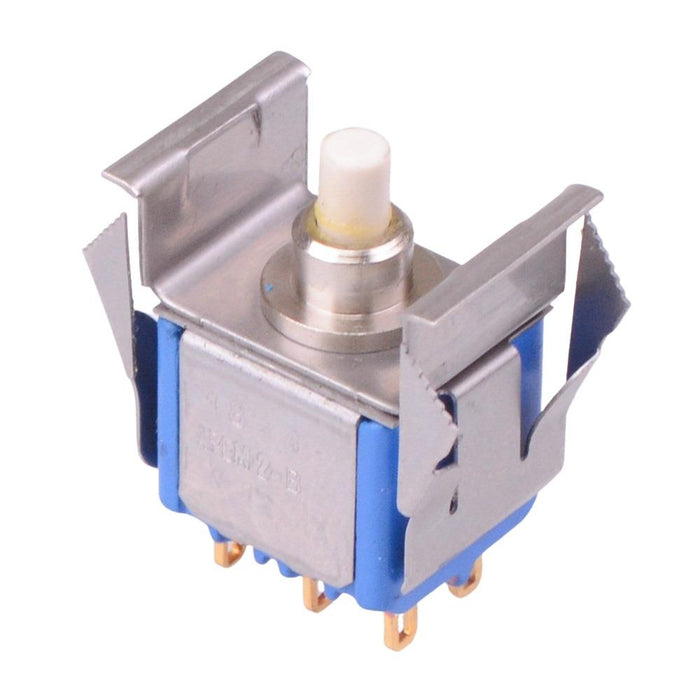

The 18845CD is a snap-action momentary push button switch, featuring a positive tactile feedback when pressed and suitable for panel mount applications.
On-(On) momentary operation DPDT contacts Rating: 0.1A 30VDC Panel cut-out: 15 x 12.5mm Solder terminals Gold plated brass contacts 2.5mm max panel thickness Terminal pitch: 4.7mm
Specification
| Actuation | Momentary |
| Contact configuration | DPDT |
| Contact material | Gold Plated Brass |
| Contact rating | 0.1A 30VDC |
| Current rating | 0.1A |
| Electrical life | 60,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -30°C to +65°C |
| Panel cut out | 15 x 12.5mm |
| Panel thickness | 2.5mm |
| Pitch | 4.7mm |
| Product series | 18000 |
| Switch operation | On-(On) |
| Terminal type | Solder |
| Voltage rating | 30VDC |
