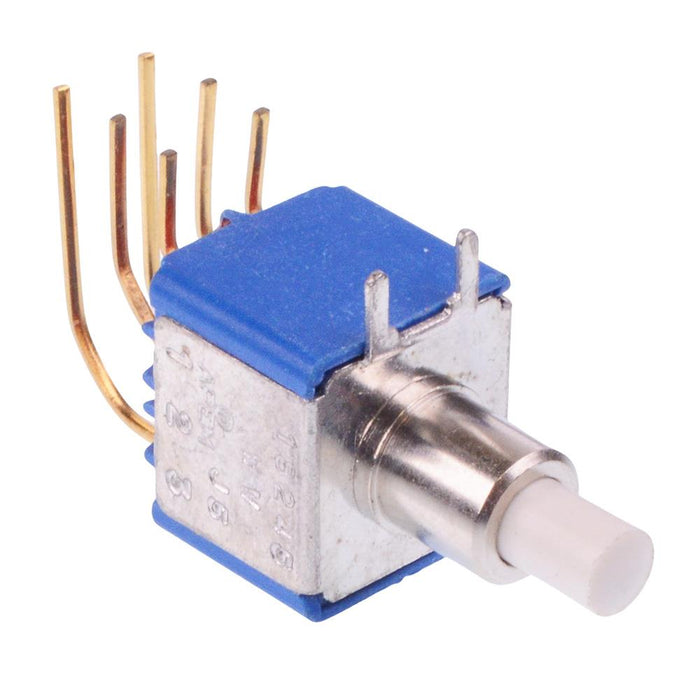

18245WWCD3 On-(On) Right Angle Momentary PCB Push Button Switch DPDT 0.1A 30VDC

by APEM
SKU 487381

MPN: 18245WWCD3

Availability:
256 in stock
Original price £3.93 - Original price £3.93
Original price
£3.93
£3.93 - £3.93
Current price £3.93
The 18245WWCD3 is a snap-action momentary push button switch featuring a positive tactile feedback when pressed, suitable for PCB applications.

  • On-(On) momentary operation
  • DPDT contacts
  • Rating: 0.1A 30VDC
  • Plain bushing
  • Right angle PCB terminals
  • Vertical mounting
  • Gold plated brass contacts
  • Short plunger (4mm diameter)
  • Terminal pitch: 4.7mm
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Contact Configuration DPDT
    Contact Material Gold Plated Brass
    Contact Rating 0.1A 30VDC
    Current Rating 0.1A
    Electrical Life 60,000 Cycles
    Illuminated No
    Mounting Style PCB
    Number of Poles 2
    Number of Positions 2
    Operating Temperature -30°C to 65°C
    Pitch 4.7mm
    Product Series 18000
    Switch Operation On-(On)
    Terminal Type Through Hole
    Voltage Rating 30VDC
