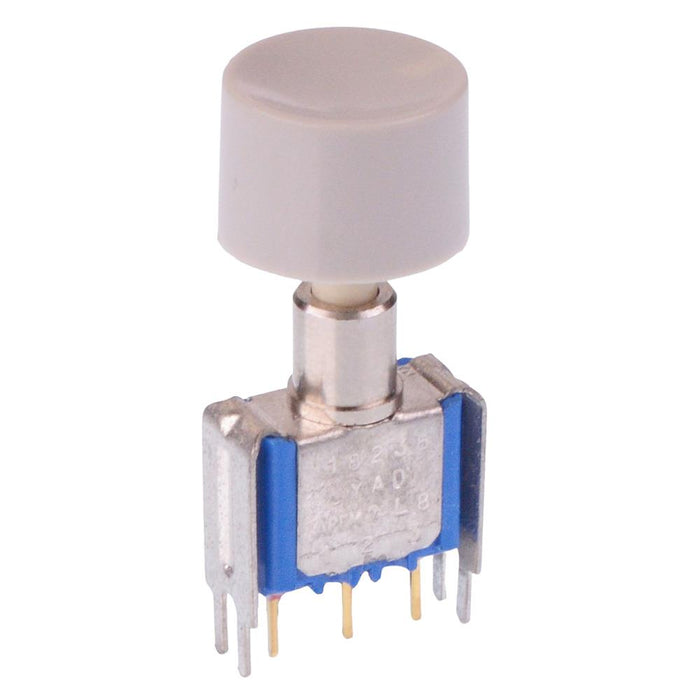

18235YAD6 On-(On) Grey Momentary PCB Push Button Switch SPDT 1A 30VDC
by APEM
SKU 487961
MPN: 18235YAD6+U3404
Availability:
35 in stock
Original price
£6.17
-
Original price
£6.17
Original price
£6.17
£6.17
£6.17
-
£6.17
Current price
£6.17
The 18235YAD3 is a snap-action momentary push button switch featuring a positive tactile feedback when pressed, suitable for PCB applications.
On-(On) momentary operation SPDT contacts Rating: 1A 30VDC Grey U3404 cap 15.0 x 10.0 (diameter x height) Plain bushing PCB terminals Bracket mounting Gold plated silver contacts Plunger: 3.1 x 5.85mm (diameter x height) Terminal pitch: 4.7mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Grey |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 1A 30VDC |
| Current Rating | 1A |
| Electrical Life | 60,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to 65°C |
| Pitch | 4.7mm |
| Product Series | 18000 |
| Switch Operation | On-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 30VDC |
