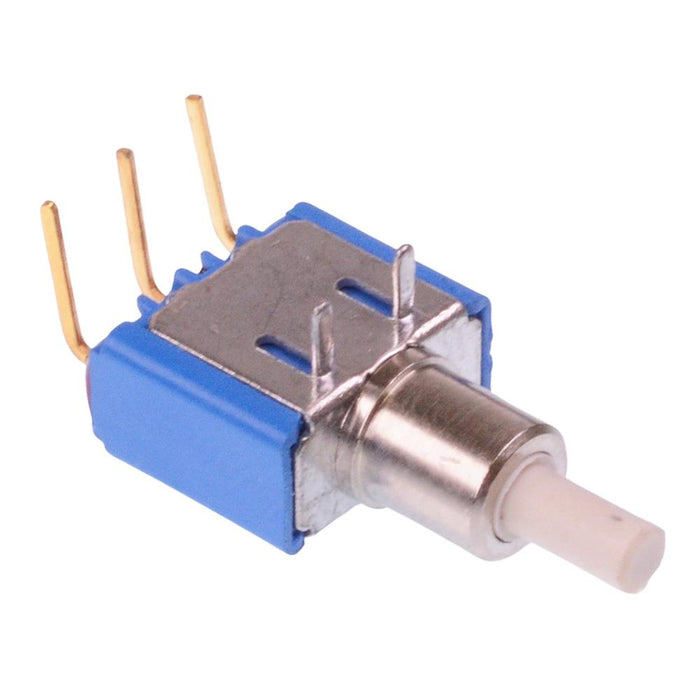

18235WAD5 On-(On) Right Angle Momentary PCB Push Button Switch SPDT 1A 30VDC
by APEM
SKU 487937
MPN: 18235WAD5
Availability:
49 in stock
Original price
£4.10
-
Original price
£4.10
Original price
£4.10
Inc VAT
£4.10
-
£4.10
Current price
£4.10
Inc VAT
The 18235WAD5 is a snap-action momentary push button switch featuring a positive tactile feedback when pressed, suitable for PCB applications.
On-(On) momentary operation SPDT contacts Rating: 1A 30VDC Plain bushing Right angle PCB terminals Horizontal mounting Gold plated silver contacts Plunger: 3.1 x 6.3mm (diameter x height) Terminal pitch: 4.7mm
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPDT |
| Contact material | Gold Plated Silver |
| Contact rating | 1A 30VDC |
| Current rating | 1A |
| Electrical life | 60,000 Cycles |
| Illuminated | No |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -30°C to 65°C |
| Pitch | 4.7mm |
| Product series | 18000 |
| Switch operation | On-(On) |
| Terminal type | Through Hole |
| Voltage rating | 30VDC |
