17mm Roller Lever Waterproof Prewired Microswitch SPDT 3A IP67

SKU 481700

MPN: 481700

177 in stock
Original price £2.76 - Original price £2.76
Original price
£2.76 Inc VAT
£2.76 - £2.76
Current price £2.76 Inc VAT

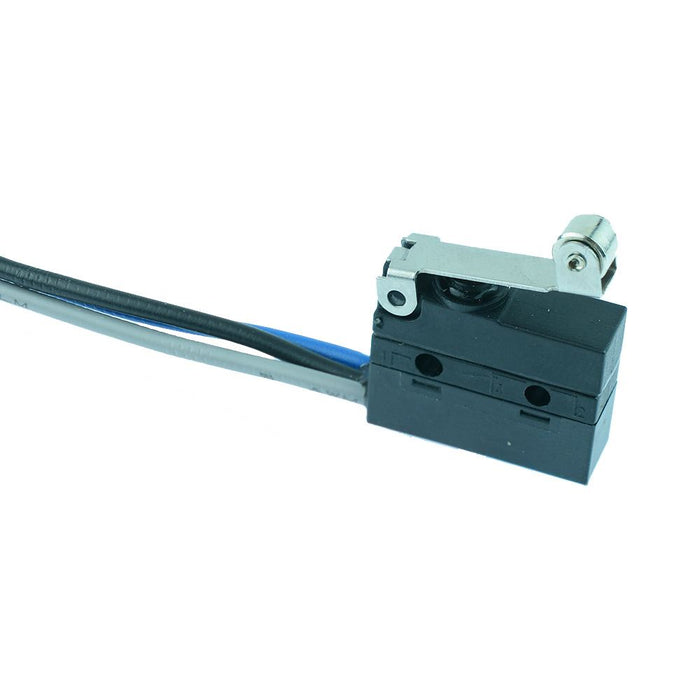

Miniature microswitch featuring a 17mm roller lever actuator, housed in a waterproof compact package capable of switching up to 3A. The switch features 500mm flying leads and is suitable for domestic and industrial applications.

  • 17.5mm roller lever actuator
  • Rating: 3A 250VAC / 48VDC
  • NO / NC contacts
  • 500mm 20AWG flying leads
  • Operating force: 110gf max
  • Release force: 25gf min
  • Pre-travel: 4.3mm max
  • Over-travel 0.6mm min
  • Differential travel: 0.7mm max
  • Body dimensions: 19.9 x 6.4 x 9.3mm (Length x Width x Height)
  • Specification
    Back order lead time 45 Days
    Contact configuration SPDT
    Contact rating 3A 250VAC
    Current rating 3A
    Electrical life 100,000 Cycles
    Number of positions 2
    Operating force 110gf Max
    Protection level IP67
    Release force 25gf Min
    Terminal type Leads
    Voltage rating 250VAC
