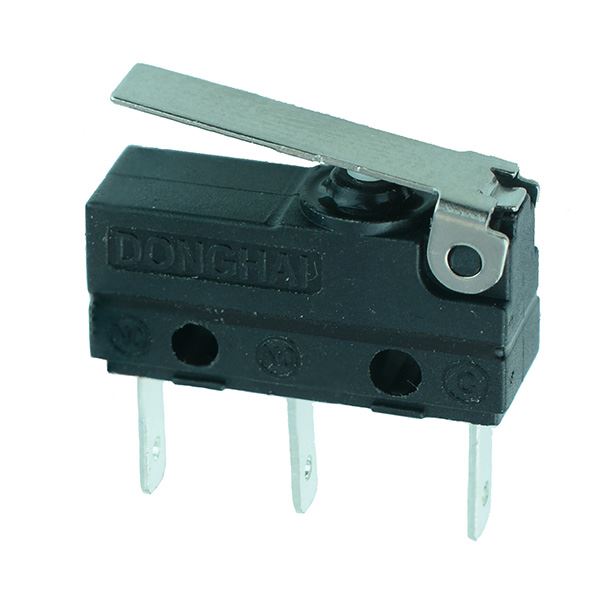

17mm Lever Waterproof Microswitch SPDT 3A

SKU 481702

MPN: 481702

Availability:
135 in stock
Original price £1.08 - Original price £1.08
Original price
£1.08 Inc VAT
£1.08 - £1.08
Current price £1.08 Inc VAT
Miniature microswitch featuring a 17mm lever actuator, housed in a waterproof compact package capable of switching up to 3A. The switch features quick connect terminals and is suitable for domestic and industrial applications.

  • 17.7mm lever actuator
  • Rating: 3A 250VAC / 48VDC
  • NO / NC contacts
  • 2.8mm quick connect terminals
  • Operating force: 105gf max
  • Release force: 20gf min
  • Pre-travel: 4.3mm max
  • Over-travel 0.6mm min
  • Differential travel: 0.7mm max
  • Body dimensions: 19.9 x 6.4 x 9.3mm (Length x Width x Height)
  • Specification
    Back order lead time 45 Days
    Contact configuration SPDT
    Contact rating 3A 250VAC
    Current rating 3A
    Electrical life 100,000 Cycles
    Number of positions 2
    Operating force 105gf Max
    Protection level IP67
    Release force 20gf Min
    Terminal type Quick Connect
    Voltage rating 250VAC
    Request a quote
