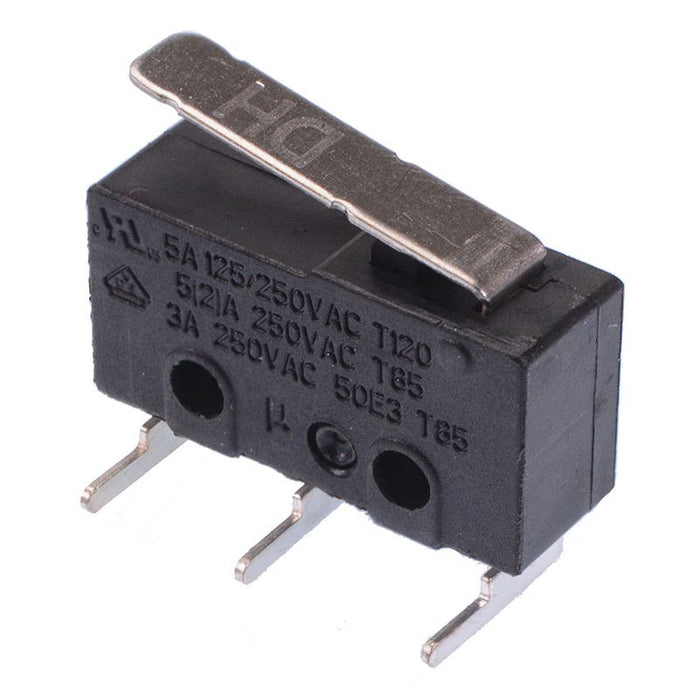

17mm Lever Horizontal PCB V4 Miniature Microswitch SPDT 5A

SKU 483508

MPN: 483508

Availability:
961 in stock
Original price £0.62 - Original price £0.62
Original price
£0.62 Inc VAT
£0.62 - £0.62
Current price £0.62 Inc VAT
Miniature microswitch featuring a 17mm lever actuator housed in a compact package capable of switching up to 5A. The switch features SPDT contacts and left hand PCB terminals making them suitable for a wide range applications.

  • 17mm lever actuator
  • Rating: 5A 250VAC
  • NO / NC contacts
  • Left hand PCB terminals
  • Terminal pitch: 8.7, 7.3mm
  • Body dimensions: 19.9 x 6.7 x 10.4mm (Length x Width x Height)
  • Specification
    Back order lead time 45 Days
    Contact configuration SPDT
    Contact rating 5A 250VAC
    Current rating 5A
    Electrical life 50,000 Cycles
    Mounting style PCB
    Number of positions 2
    Operating force 4.5N Max
    Operating temperature -25°C to +85°C
    Terminal type Through Hole
    Voltage rating 250VAC
